SWDS by Dixon Valve | Water-Steam Washdown Station | 3/4" Inlet & Outlet | Bronze

SWDS by Dixon Valve | Water-Steam Washdown Station | 3/4" Inlet & Outlet | Bronze

Save $360.61 Save $360.61
$3,245.46
$3,245.46 - $3,245.46
$3,245.46
$2,884.85
$2,884.85 - $2,884.85
$2,884.85

Dixon Valve

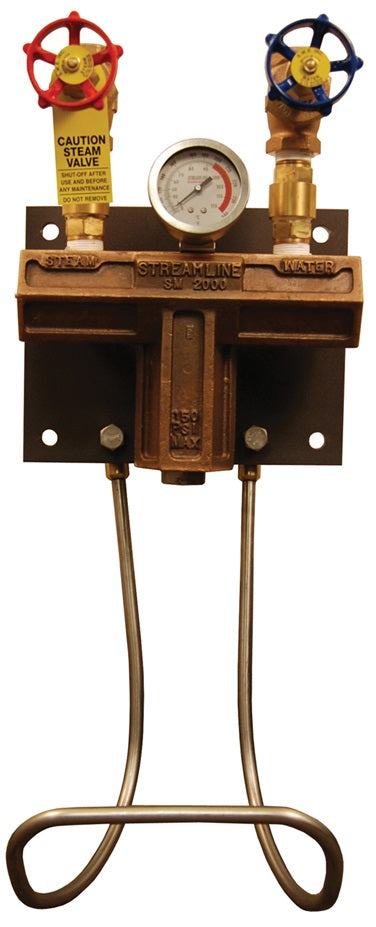

Water-Steam Washdown Station

Fail-safe mixing station safely blends steam and cold water for hot water on demand. Should cold water fail, the steam is instantly shut-off.
Specifications for Variant SKU: SWDS Dixon
Material(s): Bronze
Features:
  • Control valves (globe style).
  • Dial thermometer.
  • In-line check valves.
  • 3/4" inlet and outlet.
  • Material: Bronze.
  • Stainless steel hose rack.
  • Mounting plate and hardware for wall mounting.
  • NOTE: Station is not supplied with hose and nozzle.
Safety Notes:
  • Steam pressure requirements: 80 PSI minimum, 90 PSI maximum.
  • Water pressure requirements: 50 PSI minimum, 80 PSI maximum.
Part Number Description
SWDS Water-Steam Washdown Station | 3/4" Inlet & Outlet
