T10-4X4 Couplamatic T Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 1/4" Hose ID - G-1/4-19 Thread Size - 1/4" BSPP

T10-4X4 by Couplamatic | T Series Coupling | 1/4" Hose ID x G-1/4-19 Thread Size BSPP 60° Cone Female Swivel | 1/4" BSPP | Straight | Trivalent Zinc Plating | Pack of 10

Save $12.09

$108.78

$108.78 - $108.78

$108.78

$96.69

$96.69 - $96.69

$96.69

Couplamatic Systems Inc.
T Series - BSPP - British Standard Parallel 60° Cone - Female Swivel

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: T10-4X4 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female BSPP, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

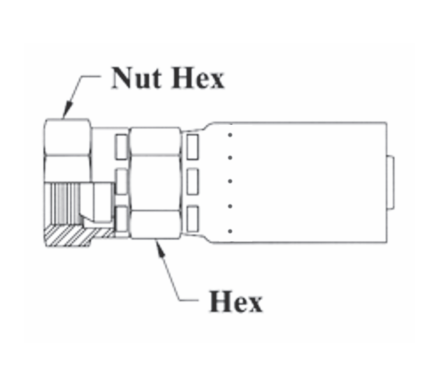

Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	Weatherhead E
T10-4X4	1/4"	1/4"	G-1/4-19	9/16"	3/4"	04E-354
T10-6X6	3/8"	3/8"	G-3/8-19	3/4"	7/8"	06E-356
T10-8X8	1/2"	1/2"	G-1/2-14	13/16"	1"	08E-358

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
