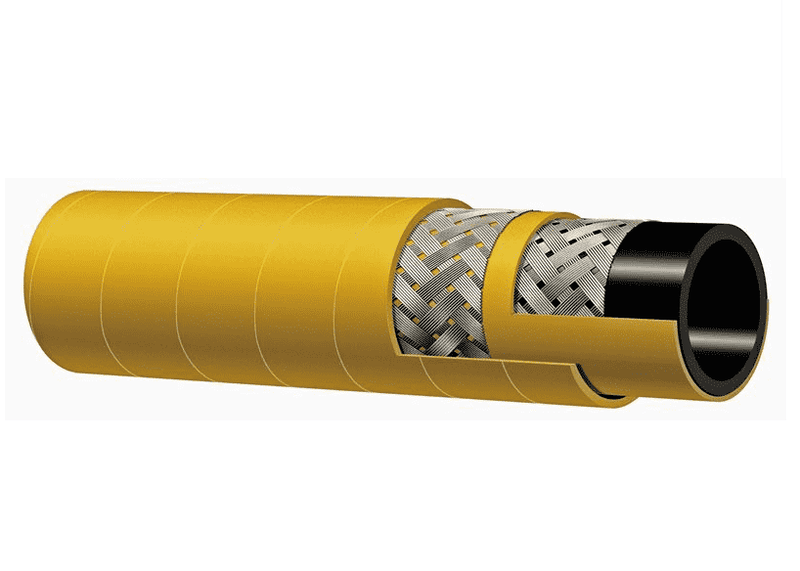

T146AK100X100 Alfagomma by Kuriyama | Braided MSHA Mine Spray Hose | Yellow | 1" ID | 1.34" OD | 1000 PSI | 100ft Length

T146AK100X100 Alfagomma by Kuriyama | Braided MSHA Mine Spray Hose | Yellow | 1" ID | 1.34" OD | 1000 PSI | 100ft Length

Save $160.74 Save $160.74
$562.59
$562.59 - $562.59
$562.59
$401.85
$401.85 - $401.85
$401.85

Kuriyama Alfagomma® T146AK Series 1000 PSI Braided MSHA Mine Spray Hose - Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: T146AK100X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T146AK Series
Hose Color(s): Yellow
Internal Diameter: 1in
Outer Diameter: 1.34in
Tubing Construction: SBR/Nitrile Blend
Cover Construction: Pin Pricked SBR/Nitrile Blend
Applicable Specs & Approvals: Applicable MSHA Standards
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Underground mine water spray for dust control. Also usable on continuous mining machinery. SAE Rating: N/A
Other Ratings: N/A Tube: Black Extruded SBR/NBR blend - oil mist resistant.
Reinforcement: High tensile braided steel wire. Cover: Yellow SBR/NBR blend - abrasion, ozone, hydrocarbon and fire resistant - pin pricked.
Temperature Range: -22 deg. F (-30 deg. C) to 200 deg. F (+90 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ALFAGOMMA - ITALY - 70 BAR (1000 PSI) MINE SPRAY MSHA IC - 152/6 (embossed)
  • COUPLING SUGGESTIONS: Permanently attached crimped hydraulic couplings.
Part Number Nominal ID Nominal ID Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T146AK075X50 3/4" 19mm 1.10" 28mm 1000 PSI 3-3/4" 50ft 0.44 lbs
T146AK075X100 3/4" 19mm 1.10" 28mm 1000 PSI 3-3/4" 100ft 0.44 lbs
T146AK100X50 1" 25mm 1.34" 34mm 1000 PSI 5" 50ft 0.58 lbs
T146AK100X100 1" 25mm 1.34" 34mm 1000 PSI 5" 100ft 0.58 lbs
T146AK125X50 1-1/4" 32mm 1.61" 41mm 1000 PSI 6-1/4" 50ft 0.75 lbs
T146AK125X100 1-1/4" 32mm 1.61" 41mm 1000 PSI 6-1/4" 100ft 0.75 lbs
T146AK150X50 1-1/2" 38mm 1.93" 49mm 1000 PSI 7-1/2" 50ft 1.07 lbs
T146AK150X100 1-1/2" 38mm 1.93" 49mm 1000 PSI 7-1/2" 100ft 1.07 lbs
T146AK200X50 2" 51mm 2.48" 63mm 1000 PSI 10" 50ft 1.47 lbs
T146AK200X100 2" 51mm 2.48" 63mm 1000 PSI 10" 100ft 1.47 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
