T155AK125X100 Kuriyama Alfagomma Textile Cord Air Drill Hose - Yellow - 1-1/4" ID - 1.73" OD - 300 PSI - 100ft

T155AK125X100 Alfagomma by Kuriyama | Textile Cord Air Drill Hose | Yellow | 1-1/4" ID | 1.73" OD | 300 PSI | 100ft Length

Save $189.70 Save $189.70
$663.94
$663.94 - $663.94
$663.94
$474.24
$474.24 - $474.24
$474.24

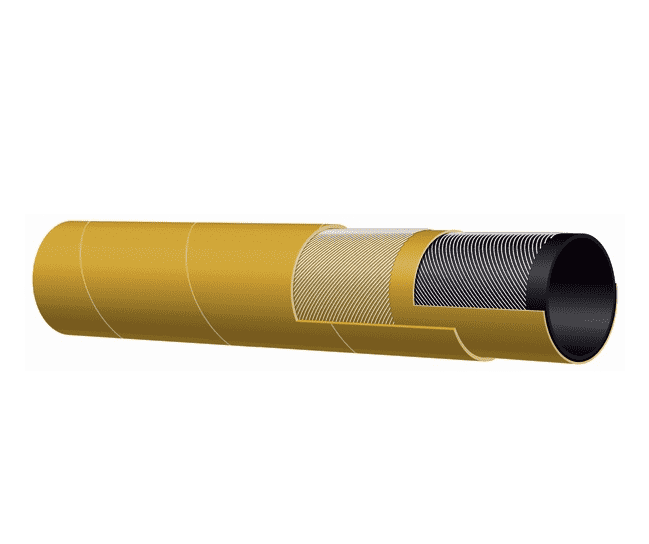

Kuriyama Alfagomma® T155AK Series 300 PSI Textile Cord "Air Drill" Hose - Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: T155AK125X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T155AK Series
Hose Color(s): Yellow
Internal Diameter: 1.25in
Outer Diameter: 1.73in
Tubing Construction: SBR/Nitrile Blend
Cover Construction: SBR

SPECIFICATIONS

Application: High quality air hose for mining and construction service. SAE Rating: N/A
Other Ratings: N/A Tube: Black SBR/NBR blend - oil mist resistant.
Reinforcement: Spiralled, high tensile textile cords. Cover: Yellow SBR - abrasion and ozone-resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY - T155 20 BAR (300 PSI) AIR (in blue letters)
  • Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps or bands. Universal couplings may be used on sizes (1/2" - 2")
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (ft.) (lbs./ft.)
T155AK050X100 1/2" 13mm 0.83" 21mm 300 PSI 100ft 0.22 lbs
T155AK050X50 1/2" 13mm 0.83" 21mm 300 PSI 50ft 0.22 lbs
T155AK075X100 3/4" 19mm 1.14" 29mm 300 PSI 100ft 0.38 lbs
T155AK100X100 1" 25mm 1.38" 35mm 300 PSI 100ft 0.48 lbs
T155AK100X50 1" 25mm 1.38" 35mm 300 PSI 50ft 0.48 lbs
T155AK125X100 1-1/4" 32mm 1.73" 44mm 300 PSI 100ft 0.60 lbs
T155AK150X100 1-1/2" 38mm 1.97" 50mm 300 PSI 100ft 0.70 lbs
T155AK200X100 2" 51mm 2.56" 65mm 300 PSI 100ft 1.12 lbs
T155AK200X50 2" 51mm 2.56" 65mm 300 PSI 50ft 1.12 lbs
T155AK250X100 2-1/2" 63mm 3.11" 79mm 300 PSI 100ft 1.55 lbs
T155AK250X50 2-1/2" 63mm 3.11" 79mm 300 PSI 50ft 1.55 lbs
T155AK300X100 3" 76mm 3.62" 92mm 300 PSI 100ft 1.89 lbs
T155AK300X50 3" 76mm 3.62" 92mm 300 PSI 50ft 1.89 lbs
T155AK400X100 4" 102mm 4.65" 118mm 300 PSI 100ft 2.47 lbs
T155AK400X50 4" 102mm 4.65" 118mm 300 PSI 50ft 2.47 lbs
