T20-4X4 Couplamatic T Series Coupling - Inverted Male - 90° Bend - 1/4" Hose ID - 7/16x24 Thread Size

T20-4X4 by Couplamatic | T Series Coupling | 1/4" Hose ID x 7/16x24 Thread Size Inverted Male | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $9.29 Save $9.29
$83.63
$83.63 - $83.63
$83.63
$74.34
$74.34 - $74.34
$74.34

Couplamatic Systems Inc.
T Series - Inverted Male - 90° Bend

Package Quantity: 10 EA

Specifications for Variant SKU: T20-4X4 Couplamatic | 10 |
Series: T Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male Inverted Flare, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

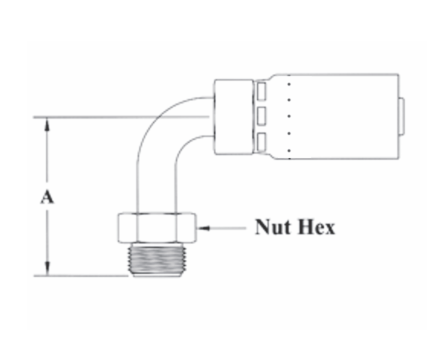

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Weatherhead E
T20-4X4 1/4" 7/16x24 1/4" 1.23" 7/16" 04E-B64
T20-6X6 3/8" 5/8x18 3/8" 1.63" 5/8" 06E-B66

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
