T202AA400X100 Alfagomma by Kuriyama | General Purpose Water S & D Hose | Black | 4" ID | 4.49" OD | 150 PSI | EPDM | 100ft Length

T202AA400X100 Alfagomma by Kuriyama | General Purpose Water S & D Hose | Black | 4" ID | 4.49" OD | 150 PSI | EPDM | 100ft Length

Save $445.51 Save $445.51
$1,559.28
$1,559.28 - $1,559.28
$1,559.28
$1,113.77
$1,113.77 - $1,113.77
$1,113.77

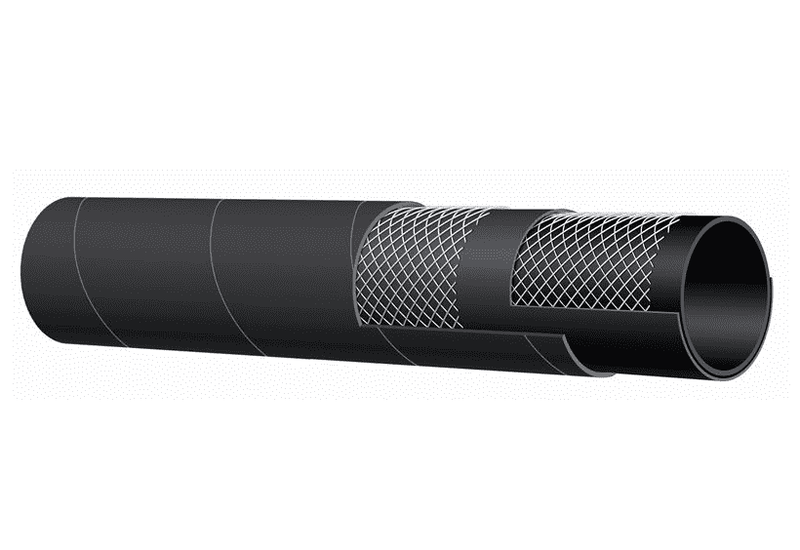

Kuriyama Alfagomma® T202AA Series 150 PSI EPDM General Purpose Water Suction & Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T202AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T202AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.49in
Tubing Construction: EPDM
Cover Construction: EPDM
Application: Suction and discharge of non-corrosive liquids for irrigation, construction, fertilizers and lasso acid solutions. SAE Rating: N/A
Other Ratings: N/A Tube: Black EPDM
Reinforcement: Spiralled high tensile textile cords and highly flexible steel helix wire/wires. Cover: Black EPDM - abrasion and ozone resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - Alfagomma - Italy - T202 10 BAR (150 PSI)GENERAL PURPOSE EPDM (in green letters)
  • Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in. Hg) (in.) (ft.) (lbs./ft.)
T202AA100X100 1" 25mm 1.38" 35mm 150 PSI 30" 4" 100ft 0.47 lbs
T202AA125X100 1-1/4" 32mm 1.65" 42mm 150 PSI 30" 5" 100ft 0.56 lbs
T202AA150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30" 6" 100ft 0.64 lbs
T202AA200X100 2" 51mm 2.40" 61mm 150 PSI 30" 8" 100ft 0.84 lbs
T202AA250X100 2-1/2" 63mm 2.95" 75mm 150 PSI 27" 10" 100ft 1.20 lbs
T202AA300X100 3" 76mm 3.46" 88mm 150 PSI 27" 12" 100ft 1.44 lbs
T202AA350X100 3-1/2" 90mm 4.02" 102mm 150 PSI 27" 14" 100ft 1.82 lbs
T202AA400X100 4" 102mm 4.49" 114mm 150 PSI 27" 16" 100ft 2.03 lbs
T202AA500X100 5" 127mm 5.55" 141mm 150 PSI 24" 25" 100ft 3.18 lbs
T202AA500X50 5" 127mm 5.55" 141mm 150 PSI 24" 25" 50ft 3.18 lbs
T202AA600X100 6" 152mm 6.54" 166mm 150 PSI 24" 30" 100ft 1.01 lbs
T202AA600X50 6" 152mm 6.54" 166mm 150 PSI 24" 30" 50ft 1.01 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
