T204AA800X25 Alfagomma by Kuriyama | Water S & D Hose | Black | 8" ID | 8.70" OD | 75 PSI | SBR | 25ft Length

T204AA800X25 Alfagomma by Kuriyama | Water S & D Hose | Black | 8" ID | 8.70" OD | 75 PSI | SBR | 25ft Length

Save $358.93 Save $358.93
$1,256.25
$1,256.25 - $1,256.25
$1,256.25
$897.32
$897.32 - $897.32
$897.32

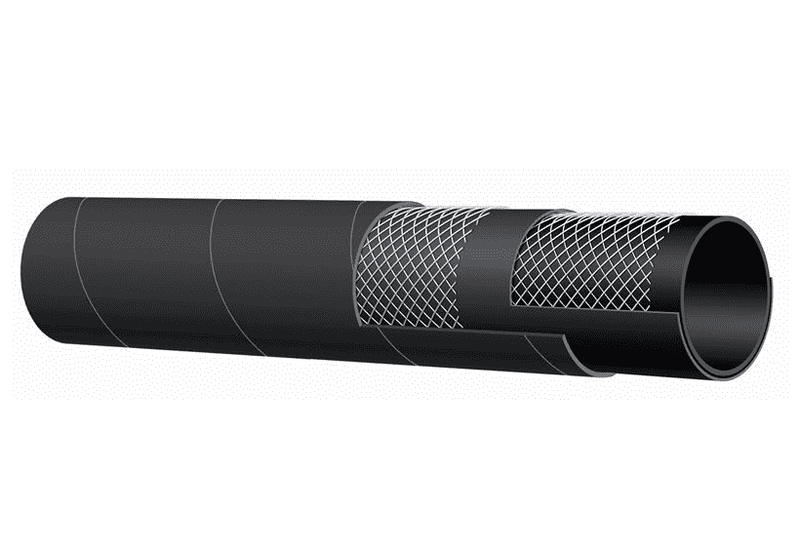

Kuriyama Alfagomma® T204AA Series SBR Water Suction & Discharge Hose - Black

Package Quantity: 25 FT

Specifications for Variant SKU: T204AA800X25 Kuriyama | 25 |
Brand: Alfagomma
Series: T204AA Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 8.70in
Tubing Construction: SBR
Cover Construction: SBR

SPECIFICATIONS

Application: Suction and discharge of water for irrigation andconstruction. SAE Rating: N/A
Other Ratings: N/A Tube: Black SBR.
Reinforcement: Spiralled high tensile textile cords and flexible steel helix wires. Cover: Black SBR - ozone and abrasion-resistant.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ALFAGOMMA- ITALY - T204 (embossed)
  • Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Part Number Nominal ID Nominal OD Max Rec.Working Pressure Vacuum Min. Bend Radiusat 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in. Hg) (in.) (ft.) (lbs./ft.)
T204AA600X100 6" 152mm 6.54" 166mm 75 PSI 24" 30" 100ft 4.13 lbs
T204AA600X20 6" 152mm 6.54" 166mm 75 PSI 24" 30" 20ft 4.13 lbs
T204AA600X25 6" 152mm 6.54" 166mm 75 PSI 24" 30" 25ft 4.13 lbs
T204AA600X50 6" 152mm 6.54" 166mm 75 PSI 24" 30" 50ft 4.13 lbs
T204AA800X20 8" 203mm 8.70" 221mm 75 PSI 21" 40" 20ft 7.06 lbs
T204AA800X25 8" 203mm 8.70" 221mm 75 PSI 21" 40" 25ft 7.06 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
