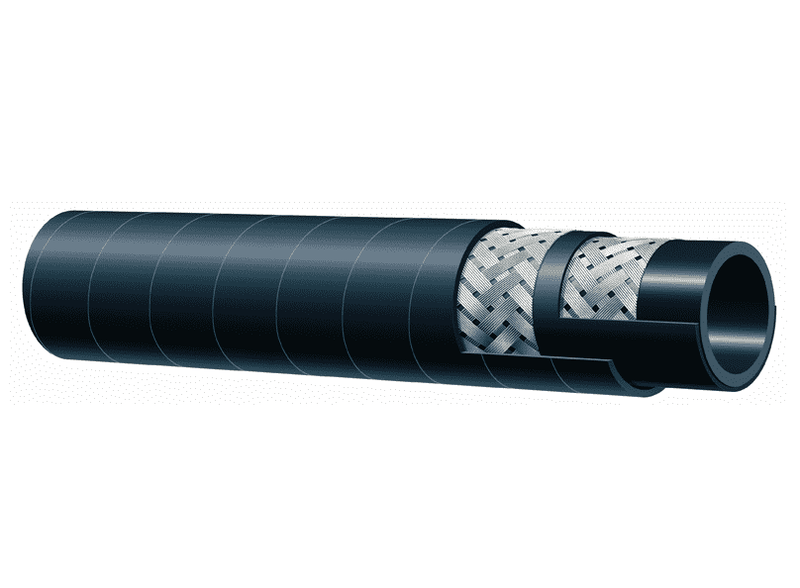

T340AA075X200 Alfagomma by Kuriyama | Braided Steam Hose | Black | 3/4" ID | 1.22" OD | 270 PSI | EPDM | 200ft Length

T340AA075X200 Alfagomma by Kuriyama | Braided Steam Hose | Black | 3/4" ID | 1.22" OD | 270 PSI | EPDM | 200ft Length

Save $86.35 Save $86.35
$874.08
$874.08 - $874.08
$874.08
$787.73
$787.73 - $787.73
$787.73

Kuriyama Alfagomma® T340AH Series 270 PSI EPDM Braided Steam Hose - Red / Black

Package Quantity: 200 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: T340AA075X200 Kuriyama | 200 |
Brand: Alfagomma
Series: T340AA Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application:
  • The transfer of saturated steam up to 270 PSI AND 430 deg. F (+220 deg. C).
  • Use with superheated steam will shorten hose life. Proper draining of steam hose after each use will increase service life.
  • Not recommended for washdown applications where detergent or oils are present.
    		•  SAE Rating: N/A
    Other Ratings: N/A Tube: Black extruded EPDM - heat-resistant. Not for steam cleaner use.
    Reinforcement: High tensile steel wire braids. Cover: Red or Black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting.
    Temperature Range: -40 deg. F (-40 deg. C) to 430 deg. F (+220 deg. C) Crimp Fittings: N/A
    Reusable Fittings: N/A Specifications N/A
    Other Features:
    • Branding: ALFAGOMMA - ITALY T340 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed)
    • Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps.
    • Universal quick-acting couplings should not be used with steam hose.
    • Warning: Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.
    Part Number Color Nominal ID Nominal OD Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
    (in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
    T340AH050X50 Red 1/2" 13mm 0.91" 23mm 270 PSI 5" 50ft 0.28 lbs
    T340AH075X200 Red 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 200ft 0.52 lbs
    T340AH0100X50 Red 1" 25mm 1.50" 38mm 270 PSI 10" 50ft 0.60 lbs
    T340AA050X50 Black 1/2" 13mm 0.91" 23mm 270 PSI 5" 50ft 0.28 lbs
    T340AA075X200 Black 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 200ft 0.52 lbs
    T340AA0100X50 Black 1" 25mm 1.50" 38mm 270 PSI 10" 50ft 0.60 lbs
