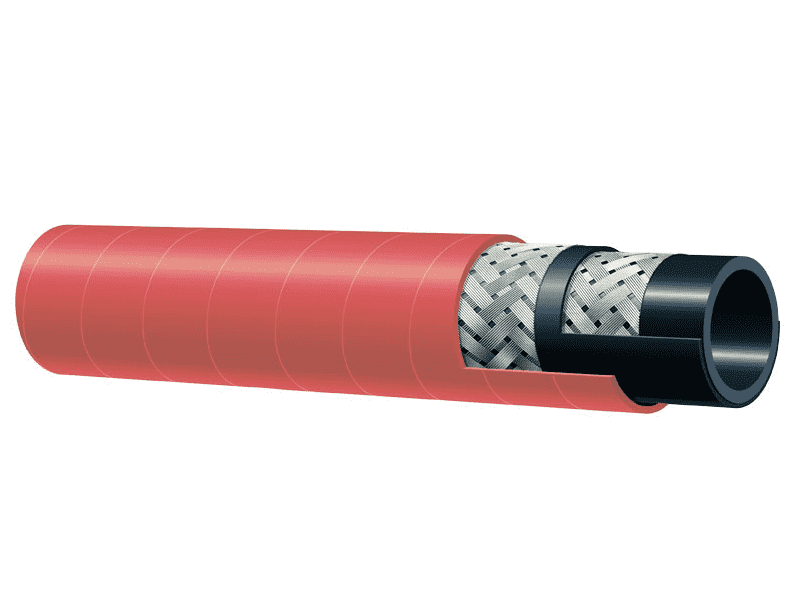

T340AH075X200 Alfagomma by Kuriyama | Braided Steam Hose | Red | 3/4" ID | 1.22" OD | 270 PSI | EPDM | 200ft Length

T340AH075X200 Alfagomma by Kuriyama | Braided Steam Hose | Red | 3/4" ID | 1.22" OD | 270 PSI | EPDM | 200ft Length

Save $24.54 Save $24.54
$882.97
$882.97 - $882.97
$882.97
$858.43
$858.43 - $858.43
$858.43

Kuriyama Alfagomma® T340AH Series 270 PSI EPDM Braided Steam Hose - Red / Black

Package Quantity: 200 FT

Specifications for Variant SKU: T340AH075X200 Kuriyama | 200 |
Brand: Alfagomma
Series: T340AH Series
Hose Color(s): Red
Internal Diameter: 0.75in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover



Application:
  • The transfer of saturated steam up to 270 PSI AND 430 deg. F (+220 deg. C).
  • Use with superheated steam will shorten hose life. Proper draining of steam hose after each use will increase service life.
  • Not recommended for washdown applications where detergent or oils are present.
 Tube: Black extruded EPDM - heat-resistant. Not for steam cleaner use.
Reinforcement: High tensile steel wire braids. Cover: Red or Black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting.
Temperature Range: -40 deg. F (-40 deg. C) to 430 deg. F (+220 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T340 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed)
  • Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps.
  • Universal quick-acting couplings should not be used with steam hose.
  • Warning: Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.
Part Number Color Nominal ID Nominal OD Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T340AH050X50 Red 1/2" 13mm 0.91" 23mm 270 PSI 5" 50ft 0.28 lbs
T340AH075X200 Red 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 200ft 0.52 lbs
T340AA075X200 Black 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 200ft 0.52 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
