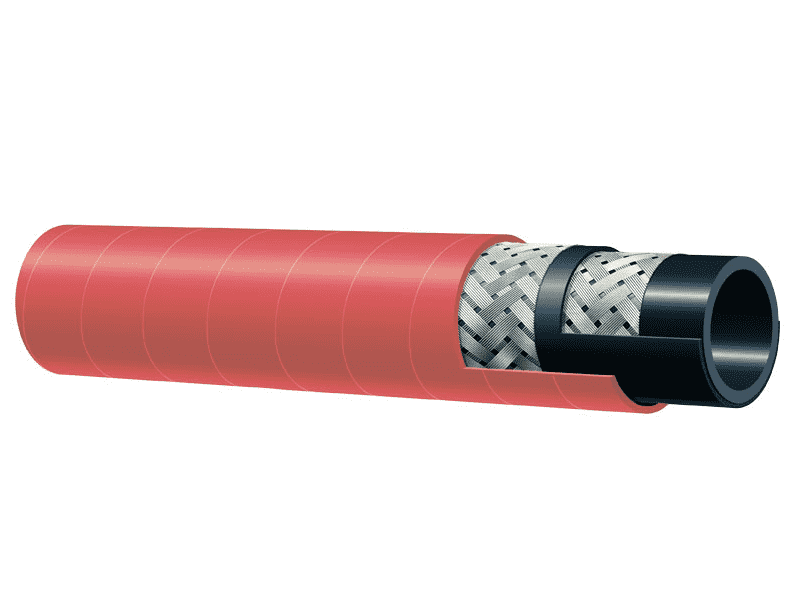

T341AH200X50 Alfagomma by Kuriyama | Braided Steam Hose | Red | 2" ID | 2.64" OD | 270 PSI | Chlorobutyl | 50ft Length

T341AH200X50 Alfagomma by Kuriyama | Braided Steam Hose | Red | 2" ID | 2.64" OD | 270 PSI | Chlorobutyl | 50ft Length

Save $283.18 Save $283.18
$991.12
$991.12 - $991.12
$991.12
$707.94
$707.94 - $707.94
$707.94

Kuriyama Alfagomma® T341AH Series 270 PSI Chlorobutyl Braided Steam Hose - Red / Black

Package Quantity: 50 FT

Specifications for Variant SKU: T341AH200X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T341AA Series
Hose Color(s): Red
Internal Diameter: 2in
Outer Diameter: 2.64in
Tubing Construction: Chlorobutyl
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application:
  • The transfer of saturated and superheated steam up to 270 PSI and max 430 deg. F (+220 deg. C) in shipyards, chemical plants and industrial applications.
  • Proper draining of steam hose after each use will increase service life.
  • Not recommended for washdown applications where detergent or oils are present.
    		•  SAE Rating: N/A
    Other Ratings: N/A Tube: Black extruded CIIR - heat-resistant. Not for steam cleaner use.
    Reinforcement: High tensile steel wire braids. Cover: Red or Black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting.
    Temperature Range: -40 deg. F (-40 deg. C) to 430 deg. F (+220 deg. C) Crimp Fittings: N/A
    Reusable Fittings: N/A Specifications N/A
    Other Features:
    • Branding:ALFAGOMMA - ITALY T341 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed)
    • Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clampsSteel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps.
    • Universal quick-acting couplings should not be used with steam hose.
    • Warning: Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.
    Part Number Color Nominal ID Nominal OD Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
    (in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
    T341AH050X50 Red 1/2" 13mm 0.91" 23mm 270 PSI 5" 50ft 0.29 lbs
    T341AH075X50 Red 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 50ft 0.53 lbs
    T341AH0100X50 Red 1" 25mm 1.50" 38mm 270 PSI 10" 50ft 0.62 lbs
    T341AH0125X50* Red 1-1/4" 32mm 1.81" 46mm 270 PSI 12-1/2" 50ft 0.89 lbs
    T341AH0150X50* Red 1-1/2" 38mm 2.05" 52mm 270 PSI 15" 50ft 0.97 lbs
    T341AH0200X50* Red 2" 51mm 2.64" 67mm 270 PSI 20" 50ft 1.44 lbs
    T341AA050X50 Black 1/2" 13mm 0.91" 23mm 270 PSI 5" 50ft 0.29 lbs
    T341AA075X50 Black 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 50ft 0.53 lbs
    T341AA0100X50 Black 1" 25mm 1.50" 38mm 270 PSI 10" 50ft 0.62 lbs
    T341AA0125X50* Black 1-1/4" 32mm 1.81" 46mm 270 PSI 12-1/2" 50ft 0.89 lbs
    T341AA0150X50* Black 1-1/2" 38mm 2.05" 52mm 270 PSI 15" 50ft 0.97 lbs
    T341AA0200X50* Black 2" 51mm 2.64" 67mm 270 PSI 20" 50ft 1.44 lbs
  • *T341AA/AH 1-1/4", 1-1/2" & 2" not suitable for "Ship to Shore" service.
