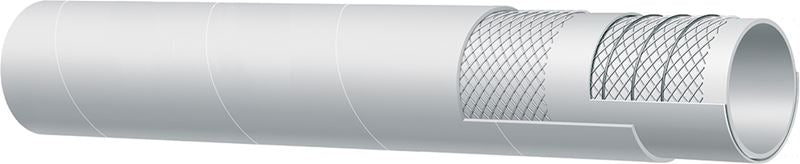

T400LL150X100 by Kuriyama Alfagomma® | T400LL Evolution Series | Multi Food Suction & Discharge Hose | 1-1/2" ID | 100ft

T400LL150X100 by Kuriyama Alfagomma® | T400LL Evolution Series | Multi Food Suction & Discharge Hose | 1-1/2" ID | 100ft

Save $37.38 Save $37.38
$941.39
$941.39 - $941.39
$941.39
$904.01
$904.01 - $904.01
$904.01

Kuriyama of America Inc.
Alfagomma® Evolution Series | T400LL | Multi Food Suction & Discharge Hose

Specially designed for wine, beer & spirits up to 75% alcohol content and 150 proof.

Note: T400LL Evolution Series replaces Kuriyama's T405LL Series Hose.
Specifications for Variant SKU: T400LL150X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T400LL Series
Hose Color(s): White
Internal Diameter: 1.50in
Outer Diameter: 1.93in
Tubing Construction: NBR
Cover Construction: NBR/PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Standards

SPECIFICATIONS

Application:
  • Liquid food suction and discharge.
  • Alcoholic beverages – wine, beer & spirits up to 75% alcohol content and 150 proof.
  • Milk tanker collection & unloading-ideal for reel applications.
  • Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C).
  • Fat foods-perfect for animal fats and any vegetable oils.
Other Ratings: Compliant to FDA and 3A standards Tube: White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free.
Reinforcement: High tensile textile cords with embedded steel helix wire. Cover: White NBR/PVC abrasion, weather & ozone resistant.
Service Temperature Range: Liquid foods: -22° F (-30° C) to +230° F (+110° C)
Fat foods: -22° F (-30° C) to +248° F (+120° C)
Other Features:
  • Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution.
Part Number ID OD Max.
Recommended
Working
Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bend Radius
at 68°F		 Standard Length Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm)
T400LL100X100 1" 25mm 1.42" 36mm 150 PSI 30in. Hg 2" 100ft 0.56 lbs
T400LL150X100 1 1/2" 38mm 1.93" 49mm 150 PSI 30in. Hg 3" 100ft 0.79 lbs
T400LL200X100 2" 51mm 2.48" 63mm 150 PSI 30in. Hg 4" 100ft 1.07 lbs
T400LL300X100 3" 76mm 3.50" 89mm 150 PSI 27in. Hg 6" 100ft 1.94 lbs
T400LL400X100 4" 102mm 4.57" 116mm 150 PSI 27in. Hg 8" 100ft 2.63 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
