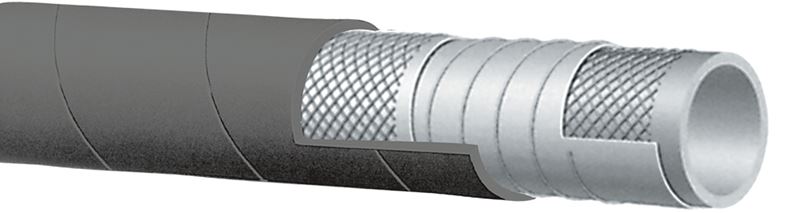

T410LB300X100 by Kuriyama Alfagomma® | T410LB Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose | 3" ID | Gray | 100ft

$1,821.14 - $1,821.14

$1,821.14

$2,273.16

$2,273.16 - $2,273.16

$2,273.16

Kuriyama of America Inc.
Alfagomma® | T410LB Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose

Specially designed for wine, beer and spirits up to 190 proof or 95% alcohol content.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: T410LB300X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T410LB Series
Hose Color(s):	Gray
Internal Diameter:	3in
Outer Diameter:	3.62in
Tubing Construction:	CIIR
Cover Construction:	EPDM
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Other Features:
Application:	Food and alcoholic beverage suction and discharge. Specially designed for wine, beer and spirits, up to 190 proof or 95% alcohol content*.	SAE Rating:	N/A
Other Ratings:	3A (18-03), FDA	Tube:	White nontoxic CIIR. Meets FDA and 3A (18-03) requirements.
Reinforcement:	High tensile textile cords with embedded PET helix.	Cover:	Gray EPDM - abrasion and ozone resistant.
Temperature Range:	-22°F (-30°C) to +226°F (+108°C)
Hose may be sterilized with steam at 226°F (+130°C) for 30 minutes or with 5% soda solution. WARNING: Not recommended for dry abrasive materials.

This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].

Part Number	ID		OD		Max. Recommended Working Pressure (PSI)	Vacuum Rating (in. Hg)	Min. Bend Radius at 68°F	Standard Length Coil	Weight (Lbs/Ft)
Part Number	(in.)	(mm)	(in.)	(mm)	Max. Recommended Working Pressure (PSI)	Vacuum Rating (in. Hg)	Min. Bend Radius at 68°F	Standard Length Coil	Weight (Lbs/Ft)
T410LB100X100	1"	25mm	1.46"	37mm	240 PSI	30in. Hg	5"	100ft	0.60 lbs
T410LB150X100	1-1/2"	38mm	2.05"	52mm	240 PSI	30in. Hg	6"	100ft	1.00 lbs
T410LB200X100	2"	51mm	2.56"	65mm	240 PSI	30in. Hg	8"	100ft	1.29 lbs
T410LB300X100	3"	76mm	3.62"	92mm	240 PSI	30in. Hg	12"	100ft	2.23 lbs
