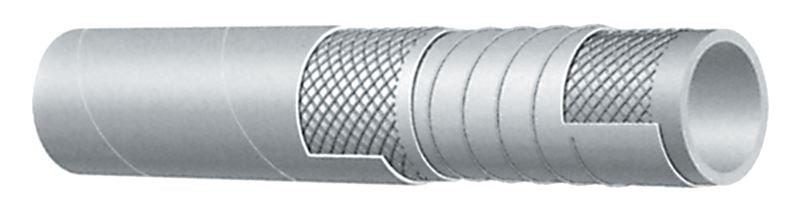

T410LL300X100 by Kuriyama Alfagomma® | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose | 3" ID | White
T410LL300X100 by Kuriyama Alfagomma® | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose | 3" ID | White | 100ft
T410LL300X100 by Kuriyama Alfagomma® | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose | 3" ID | White
T410LL300X100 by Kuriyama Alfagomma® | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose | 3" ID | White | 100ft

T410LL300X100 by Kuriyama Alfagomma® | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose | 3" ID | White | 100ft

Save $1,048.80 Save $1,048.80
$3,670.80
$3,670.80 - $3,670.80
$3,670.80
$2,622.00
$2,622.00 - $2,622.00
$2,622.00

Kuriyama of America Inc.
Alfagomma® | T410LL Series | 240 PSI Food & Beverage Suction & Discharge Brewery Hose

Specially designed for wine, beer and spirits up to 190 proof or 95% alcohol content.

Specifications for Variant SKU: T410LL300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T410LL Series
Hose Color(s): White
Internal Diameter: 3in
Outer Diameter: 3.62in
Tubing Construction: CIIR
Cover Construction: EPDM
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Application:
  • Food and alcoholic beverage suction and discharge.
  • Specially designed for wine, beer and spirits, up to 190 proof or 95% alcohol content*.
    		•  SAE Rating: N/A
    Other Ratings: 3A (18-03), FDA Tube: White nontoxic CIIR. Meets FDA and 3A (18-03) requirements.
    Reinforcement: High tensile textile cords with embedded PET helix. Cover: White EPDM - abrasion and ozone resistant.
    Temperature Range: -22°F (-30°C) to +226°F (+108°C)
    Other Features:
    • Hose may be sterilized with steam at 226°F (+130°C) for 30 minutes or with 5% soda solution.
    • WARNING: Not recommended for dry abrasive materials.

    *This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].

    Part Number ID OD Max.
    Recommended
    Working
    Pressure
    (PSI)    		 Vacuum Rating
    (in. Hg)    		 Min. Bend Radius
    at 68°F    		 Standard Length
    Coil    		 Weight
    (Lbs/Ft)
    (in.) (mm) (in.) (mm)
    T410LL100X100 1" 25mm 1.46" 37mm 240 PSI 30in. Hg 4" 100ft 0.60 lbs
    T410LL150X100 1-1/2" 38mm 2.05" 52mm 240 PSI 30in. Hg 6" 100ft 1.00 lbs
    T410LL200X100 2" 51mm 2.56" 65mm 240 PSI 30in. Hg 8" 100ft 1.29 lbs
    T410LL300X100 3" 76mm 3.62" 92mm 240 PSI 30in. Hg 12" 100ft 2.23 lbs
    Kuriyama

    Kuriyama

    Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
