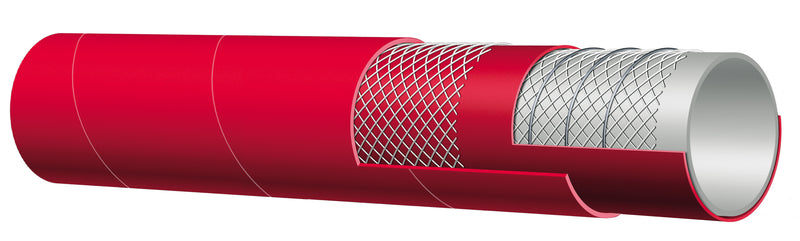

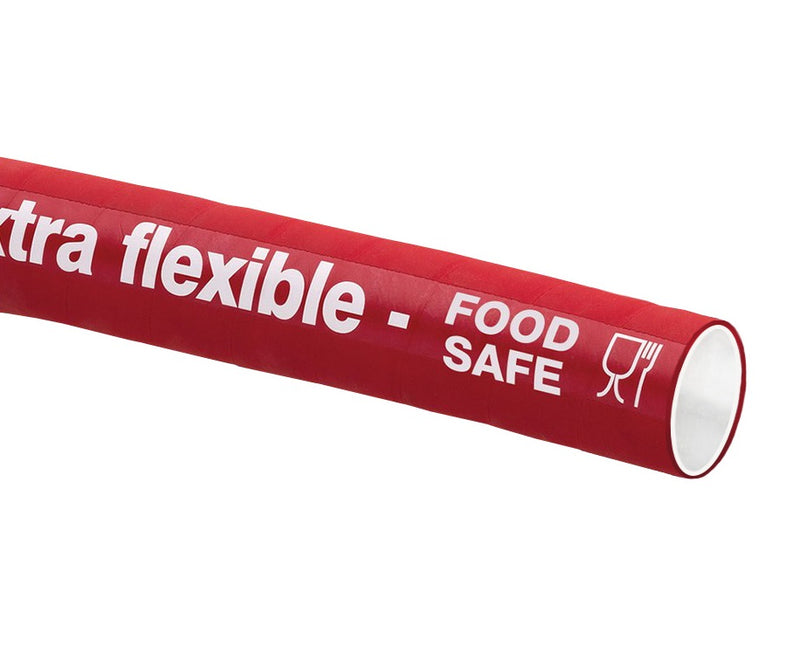

T422LH400X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 4" ID
T422LH250X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2-1/2" ID | 100ft
T422LH400X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 4" ID
T422LH250X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2-1/2" ID | 100ft

T422LH250X100 by Kuriyama Alfagomma® | The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose | 2-1/2" ID | 100ft

$1,796.92 - $1,796.92
$1,796.92
$2,422.49
$2,422.49 - $2,422.49
$2,422.49

Kuriyama of America Inc.
Alfagomma® The Brewt™ | T422LH Series | Liquid Suction & Discharge Brewery Hose

Specially designed for wine, beer and spirits up to 190 proof or 95% alcohol content.
Specifications for Variant SKU: T422LH250X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T422LH Series
Hose Color(s): Red
Internal Diameter: 2.5in
Outer Diameter: 3.11in
Tubing Construction: Chlorobutyl
Cover Construction: Natural Rubber/EPDM Blend
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Application:
  • Brewery suction and discharge.
  • Liquid food and alcoholic beverage suction and discharge, up to 190 proof or 95% alcohol content*.
  • Versatile hose for applications requiring superb flexibility and light weight, while still maintaining high strength and durability.
 SAE Rating: N/A
Other Ratings: 3A (18-03), FDA Tube: White Chlorobutyl meeting 3A (18-03) and FDA requirements
Reinforcement: High tensile textile cords with specially designed embedded helix wires Cover: Red smooth NR/EPDM blend for abrasion and ozone resistance
Temperature Range: -22°F (-30°C) to +226°F (+108°C)
Other Features:
  • Extreme Flexibility - Uniquely designed for maximum flexibility, bends easily around brewery equipment and works well in tight spaces.
  • Lightweight - Up to 25% lighter weight than similar rubber hoses, while still maintaining 150 PSI working pressure.
  • High Heat Resistance - Chlorobutyl tube capable of handling +226°F (+108°C) on a continuous basis. Allows for sterilization with +266°F (+130°C) steam for 30 minutes or with 5% soda solution.
  • High Purity Tube - Will not impart odor or taste.
  • Smooth Cover - Designed for easy cleaning, no gaps or crevices for dirt or bacteria to hide.
  • Also provides a smooth surface for clamping.

*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits' product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].

Part Number ID OD Max.
Recommended
Working
Pressure
(PSI)		 Vacuum Rating
(in. Hg)		 Min. Bend Radius
at 68°F		 Standard Length
Coil		 Weight
(Lbs/Ft)
(in.) (mm) (in.) (mm)
T422LH100X100 1" 25mm 1.54" 39mm 150 PSI 30in. Hg 2" 100ft 0.66 lbs
T422LH125X100 1-1/4" 32mm 1.81" 46mm 150 PSI 30in. Hg 2-1/2" 100ft 0.81 lbs
T422LH150X100 1-1/2" 38mm 2.05" 52mm 150 PSI 30in. Hg 3" 100ft 0.93 lbs
T422LH200X100 2" 51mm 2.56" 65mm 150 PSI 30in. Hg 4" 100ft 1.21 lbs
T422LH250X100 2-1/2" 63mm 3.11" 79mm 150 PSI 30in. Hg 5" 100ft 1.81 lbs
T422LH300X100 3" 76mm 3.62" 92mm 150 PSI 27in. Hg 6" 100ft 2.30 lbs
