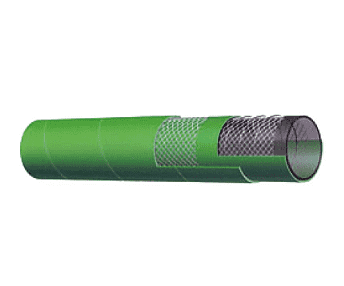

T505OG200X100 Alfagomma by Kuriyama | Acid | Chemical S & D | 240 PSI | XLPE | Green | 2" ID | 2.48" OD | 100ft Length

T505OG200X100 Alfagomma by Kuriyama | Acid | Chemical S & D | 240 PSI | XLPE | Green | 2" ID | 2.48" OD | 100ft Length

Save $492.25 Save $492.25
$1,722.88
$1,722.88 - $1,722.88
$1,722.88
$1,230.63
$1,230.63 - $1,230.63
$1,230.63

Kuriyama Alfagomma® T505OG Series Acid - Chemical S & D 240 PSI - XLPE - Green

Package Quantity: 100 FT

Specifications for Variant SKU: T505OG200X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T505OG Series
Hose Color(s): Green
Internal Diameter: 2in
Outer Diameter: 2.48in
Tubing Construction: XLPE
Cover Construction: EPDM

SPECIFICATIONS

Application:
  • Suction and transfer service for a variety of chemicals and solvents. Will handle 90% of existing chemicals.
    		•  SAE Rating: N/A
    Other Ratings: N/A Tube: Transparent XLPE (cross-linked polyethylene).
    Reinforcement: High tensile textile cords and 4 highly flexible steel helix wires. Cover: Green EPDM - abrasion and ozone resistant.
    Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
    Reusable Fittings: N/A Specifications N/A
    Literature Chemical Resistance Chart (PDF)
    Other Features:
    • Branding:ALFAGOMMA - ITALY T505 16 BAR (240 PSI) - XLPE CHEMICAL - S & D (in orange letters)
    • Coupling Suggestions: Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
    Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Min Bending Radius Standard Length Weight
    (in.) (mm) (in.) (mm) PSI (in.) (in. at 68 deg. F) (ft.) (lbs./ft.)
    T505OG075X100 3/4" 19mm 1.22" 31mm 240 PSI 27" 7-1/2" 100ft 0.46 lbs
    T505OG100X100 1" 25mm 1.46" 37mm 240 PSI 27" 9" 100ft 0.56 lbs
    T505OG150X100 1-1/2" 38mm 1.97" 50mm 240 PSI 27" 13-1/4" 100ft 0.76 lbs
    T505OG200X100 2" 51mm 2.48" 63mm 240 PSI 27" 16-1/4" 100ft 1.00 lbs
    T505OG300X100 3" 76mm 3.62" 92mm 240 PSI 24" 20-3/4" 100ft 1.83 lbs
    T505OG400X100 4" 102mm 4.65" 118mm 240 PSI 24" 26-1/2" 100ft 2.50 lbs
