T601AA600X100 Alfagomma by Kuriyama | Oil Rigger/Oil Field | Frack Tank Hose | Black | 6" ID | 6.61" OD | 150 PSI | 100ft Length

T601AA600X100 Alfagomma by Kuriyama | Oil Rigger/Oil Field | Frack Tank Hose | Black | 6" ID | 6.61" OD | 150 PSI | 100ft Length

Save $88.15 Save $88.15
$3,179.26
$3,179.26 - $3,179.26
$3,179.26
$3,091.11
$3,091.11 - $3,091.11
$3,091.11

Kuriyama Alfagomma® T601AA Series 150 PSI Oil Rigger/Oil Field - Frack Tank Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T601AA600X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T601AA Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.61in
Tubing Construction: Nitrile/PVC Blend
Cover Construction: SBR

SPECIFICATIONS

Application: Oil field vacuum tank service, for handling crude oil, frack solutions and slurries. Note: For applications up to 35% aromatics. Not for use with refined petroleum products. SAE Rating: N/A
Other Ratings: N/A Tube: Black Nitrile - PVC blend, limited oil resistance, for oil field use.

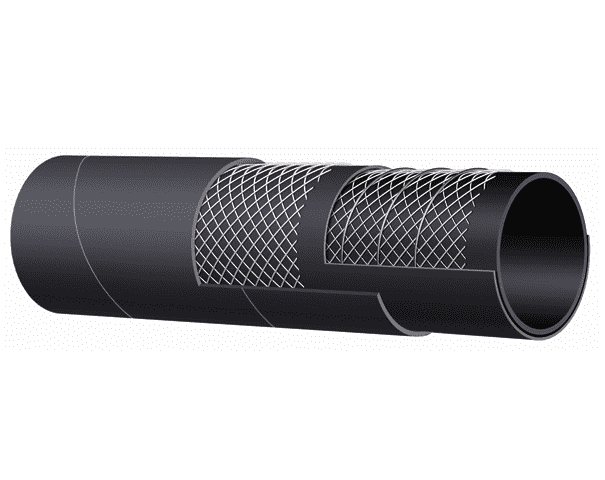

Reinforcement: High tensile textile cords; highly flexible steel helix wire. Cover: Black SBR - abrasion, ozone, limited oil resistance.
Temperature Range: -22 deg. F (-30 deg. C) to 176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T601 10 BAR (150 PSI) OIL FIELD-FRACK TANK HOSE (in blue letters)
  • Coupling Suggestions: Quick-Acting couplings or combination nipples attached with bands.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in.) (ft.) (lbs./ft.)
T601AA200X100 2" 51mm 2.40" 61mm 150 PSI 30" 10" 100ft 0.93 lbs
T601AA300X100 3" 76mm 3.46" 88mm 150 PSI 27" 15" 100ft 1.73 lbs
T601AA400X100 4" 102mm 4.57" 116mm 150 PSI 27" 20" 100ft 2.40 lbs
T601AA600X100 6" 152mm 6.61" 168mm 150 PSI 24" 30" 100ft 4.59 lbs
T601AA800X20 8" 203mm 8.86" 225mm 150 PSI 21" 40" 20ft 6.60 lbs
