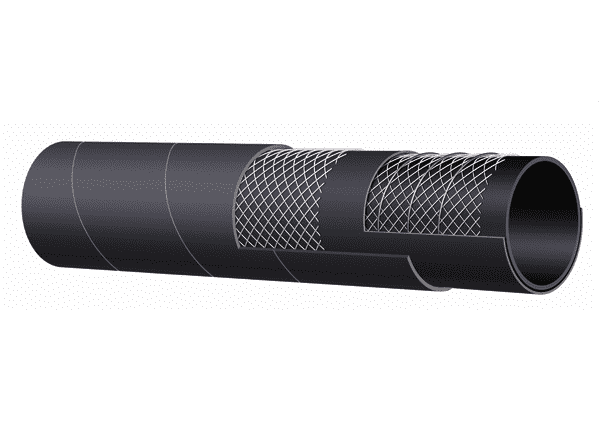

T604AA075X100 Alfagomma by Kuriyama | Flexor | SAE 100 R4 Oil Return Hose | Black | 3/4" ID | 1.14" OD | 300 PSI | 100ft Length

T604AA075X100 Alfagomma by Kuriyama | Flexor | SAE 100 R4 Oil Return Hose | Black | 3/4" ID | 1.14" OD | 300 PSI | 100ft Length

Save $192.20 Save $192.20
$672.71
$672.71 - $672.71
$672.71
$480.51
$480.51 - $480.51
$480.51

Kuriyama Alfagomma® T604AA Series Flexor - SAE 100 R4 Oil Return Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: T604AA075X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T604AA Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.14in
Tubing Construction: Conductive Nitrile
Cover Construction: Nitrile
Applicable Specs & Approvals: SAE 100R4
Special Properties: Conductive Tube

SPECIFICATIONS

Application: Low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum based hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water. SAE Rating: N/A
Other Ratings: N/A Tube: Black conductive NBR.
Reinforcement: Textile reinforced with four spiral wire helix to prevent collapsing. Cover: Black CR - oil, fuel, weather, ozone and abrasion resistant.
Temperature Range: -40 deg. F (-40 deg. C) to 212 deg. F (+100 deg. C) constant operation Maximum operating temperature: 257 deg. F (+125 deg. C). Air maximum temperature: 175deg. F (80 deg. C). Note: Operating temperatures in excess of 212 deg. F (+100 deg. C) may materially reduce the life of the hose. Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY - T604 (PSI) - SAE 100 R4 - (SIZE) - Date (in white letters)
  • Coupling Suggestions: Crimp-on permanent type or combination nipples with bands. Note: Hose cover does not need to be removed before attaching couplings.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Min. Bending Radius Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in. at 68 deg. F) (ft.) (lbs./ft.)
T604AA075X100 3/4" 19mm 1.14" 29mm 300 PSI 30" 2-1/4" 100ft 0.41 lbs
T604AA100X100 1" 25mm 1.38" 35mm 250 PSI 30" 3" 100ft 0.52 lbs
T604AA125X100 1-1/4" 32mm 1.65" 42mm 200 PSI 30" 3-3/4" 100ft 0.61 lbs
T604AA150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30" 4-1/2" 100ft 0.70 lbs
T604AA200X100 2" 51mm 2.40" 61mm 100 PSI 30" 6" 100ft 0.90 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
