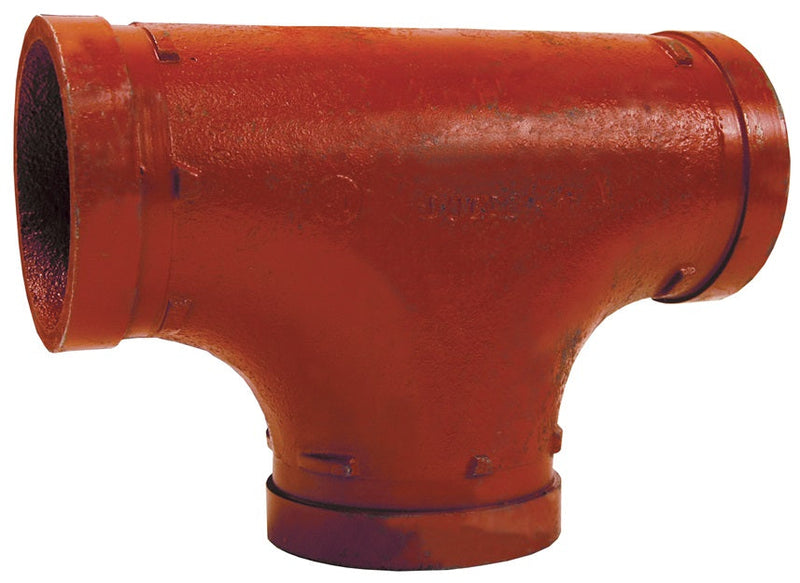

T608 by Dixon Valve | Series-T | Grooved End Fitting | Tee | 8" Grooved Ends | Ductile Iron

Save $137.32

$423.28

$423.28 - $423.28

$423.28

$285.96

$285.96 - $285.96

$285.96

Dixon Valve
Grooved End Fitting | Series-T

Designed to provide minimum pressure drop and uniform strength.

Quantity

Specifications for Variant SKU: T608 Dixon
Series:	Series-T
Shape (Orientation):	90 Degree
Ends Configuration:	8in Grooved End, 8in Grooved End, Some Ends Match
Material(s):	Ductile Iron

Comparable to:
Victaulic's #20 Grinnell's #7060
Material:
Ductile iron body with rust inhibiting paint.
Specifications:
Maximum operating pressure: 500 PSI at ambient temperature 70°F (21°C).
Approvals:
Underwriters Listed Factory Mutual approved


Ductile Iron Part Number	Nominal Size	Dimensions C to E
T602	2"	3-1/4"
T6025	2-1/2"	3-3/4"
T603	3"	4-1/4"
T604	4"	5"
T606	6"	6-1/2"
T608	8"	7-3/4"
