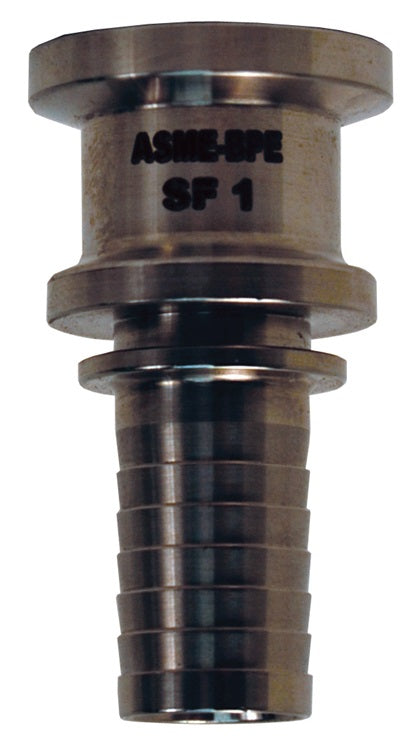

TCMR-T08 by Dixon Valve | True I.D. PTFE Hose Fitting | Mini Sanitary Tri-Clamp | 1/2" Size | 316 Stainless Steel

TCMR-T08 by Dixon Valve | True I.D. PTFE Hose Fitting | Mini Sanitary Tri-Clamp | 1/2" Size | 316 Stainless Steel

Save $3.56 Save $3.56
$40.05
$40.05 - $40.05
$40.05
$36.49
$36.49 - $36.49
$36.49

Dixon Valve
True I.D. PTFE Hose Fitting | Mini Sanitary Tri-Clamp

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Crimp collars for all True ID fittings are sold separately.
Specifications for Variant SKU: TCMR-T08 Dixon
Series: TCMR-T Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Sanitary Clamp End
Material(s): 316 Stainless Steel
Special Properties: Mini/Micro Size
Compatible with the following Series: WOC-T Series  |   BOC-T Series  |   WTB-T Series
Use:
  • For use with True I.D. PTFE hoses.
316 Stainless Steel
Part Number		 Size Crimp Collars for Convoluted Hose Crimp Collars for Smooth Bore Hose
Carbon Steel 304 Stainless Steel Carbon Steel 304 Stainless Steel
TCMR-T08 1/2" CSC-T08-1 SSC-T08-1 CSC-T08-2 SSC-T08-2
TCMR-T12 3/4" CSC-T12-1 SSC-T12-1 CSC-T12-2 SSC-T12-2
