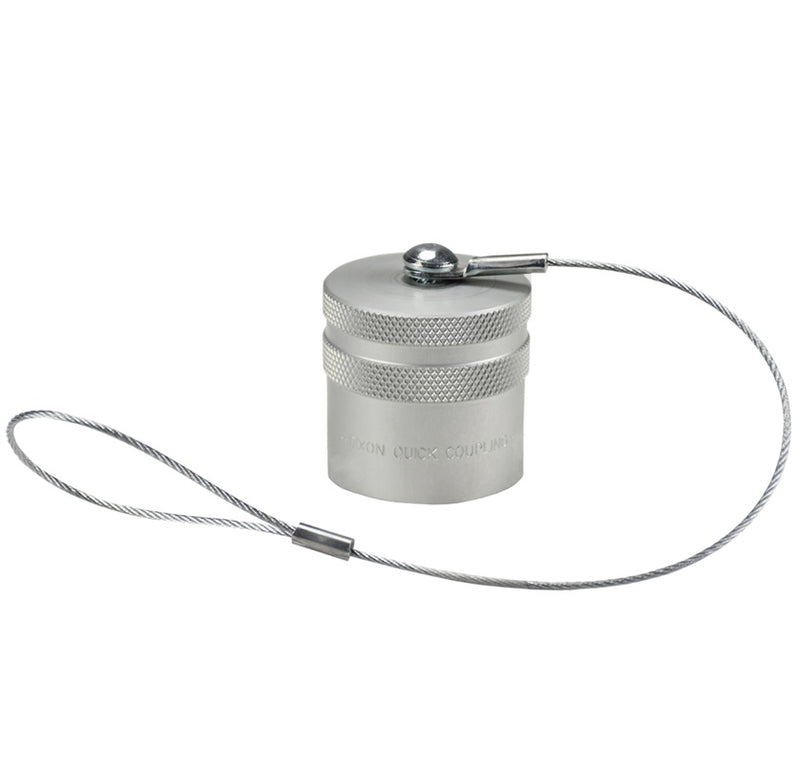

TD4.5DC-A by Dixon Valve | Hydraulic Quick Disconnect Coupling | TD-Series | 20K Dust Cap | Fits 1/2" Body Size | 9/16" Male MP | Aluminum

Save $2.04

$24.15

$24.15 - $24.15

$24.15

$22.11

$22.11 - $22.11

$22.11

Dixon Valve & Coupling
Hydraulic Coupling: TD-Series Dust Cap

Quantity

Specifications for Variant SKU: TD4.5DC-A Dixon
Series:	TD-Series
Material(s):	Aluminum

Compatibility & Interchange:	Jet Stream Screw Type Spir Star CQD Series, DNP CRS Series
Construction:	Lanyard: stainless steel bead chain.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

TD-Series \| Dust Cap

Part Number	Coupling Type	Body Size	Thread Size	Material	Length	Max. OD	Use with
TD4DC-A	Dust Cap	1/2"	1/2" - 14 Female NPTF	Aluminum	10" (254mm)	1.73" (43.94mm)	TD4F4-SS
TD4.5DC-A	Dust Cap	1/2"	9/16" Female MP	Aluminum	10" (254mm)	1.69" (42.93mm)	TD4PF4.5-SS

TD-Series \| Dust Plug

Part Number	Coupling Type	Body Size	Thread Size	Material	Length	Max. OD	Use with
4TDDP-A	Dust Plug	1/2"	1/2" - 14 Female NPTF	Aluminum	10" (254mm)	1.50" (38.10mm)	4TDF4-SS
4.5TDDP-A	Dust Plug	1/2"	9/16" Female MP	Aluminum	10" (254mm)	1.50" (38.10mm)	4TDPF4.5-SS

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
