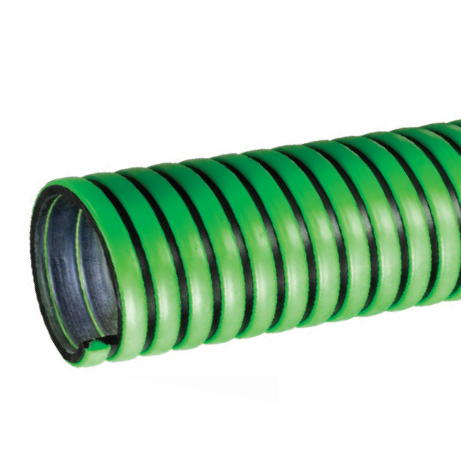

TG400X100 Kuriyama Tigerflex TG Series Tiger Green EPDM Suction Hose - 4" - 100ft

TG400X100 Tigerflex by Kuriyama | TG Series | Tiger Suction Hose | Green | 4" ID | EPDM | 100ft Length

Save $137.63 Save $137.63
$1,389.63
$1,389.63 - $1,389.63
$1,389.63
$1,252.00
$1,252.00 - $1,252.00
$1,252.00

Kuriyama Tigerflex TG™ Series Tiger Green EPDM Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: TG400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: TG Series
Hose Color(s): Green
Internal Diameter: 4in
Outer Diameter: 4.70in
Tubing Construction: EPDM
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Agriculture liquid fertilizers, Irrigation lines, Liquid manure handling, Marine bilge discharge, Septic and wastewater handling, Frack solution removal, Water suction - standard duty, Pumps, Rental and construction dewatering, Trash SAE Rating: N/A
Other Ratings: N/A Tube: EPDM
Reinforcement: Polyethylene Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 160 deg. F (+71 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Superior Rubber Compounds - Tigerflex™ uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance.
  • Superior Flexibility - Our tests show up to 22% more flexible than the competition, especially in sub-zero weather! Tiger™ Green comes off the trucks more flexible and easier to handle than other similar hoses.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners. Easy-to-handle.
  • Convoluted Outer Cover - Provides increased hose flexibility
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
TG100X100 1" 25.4mm 1.40" 35.5mm 65 PSI 45 PSI Full 28 in.Hg 2" 100ft 0.28 lbs
TG125X100 1-1/4" 31.8mm 1.63" 41.4mm 60 PSI 40 PSI Full 28 in.Hg 3" 100ft 0.33 lbs
TG150X100 1-1/2" 38.1mm 1.93" 49.0mm 50 PSI 35 PSI Full 28 in .Hg 3" 100ft 0.44 lbs
TG200X100 2" 50.8mm 2.51" 63.8mm 50 PSI 35 PSI Full 28 in .Hg 5" 100ft 0.67 lbs
TG250X100 2-1/2" 63.5mm 3.07" 78.0mm 45 PSI 30 PSI Full 28 in .Hg 5.5" 100ft 0.95 lbs
TG300X100 3" 76.2mm 3.60" 91.5mm 45 PSI 30 PSI Full 26 in .Hg 7" 100ft 1.14 lbs
TG300X30 3" 76.2mm 3.60" 91.5mm 45 PSI 30 PSI Full 26 in .Hg 7" 30ft 1.14 lbs
TG300X50 3" 76.2mm 3.60" 91.5mm 45 PSI 30 PSI Full 26 in .Hg 7" 50ft 1.14 lbs
TG300X60 3" 76.2mm 3.60" 91.5mm 45 PSI 30 PSI Full 26 in .Hg 7" 60ft 1.14 lbs
TG400X100 4" 101.6mm 4.70" 119.5mm 40 PSI 25 PSI Full 26 in .Hg 11.5" 100ft 1.84 lbs
TG400X50 4" 101.6mm 4.70" 119.5mm 40 PSI 25 PSI Full 26 in .Hg 11.5" 50ft 1.84 lbs
TG600X100 6" 152.4mm 6.85" 174.0mm 30 PSI 20 PSI 28 in .Hg 24 in .Hg 20" 100ft 3.07 lbs
TG600X20 6" 152.4mm 6.85" 174.0mm 30 PSI 20 PSI 28 in .Hg 24 in .Hg 20" 20ft 3.07 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
