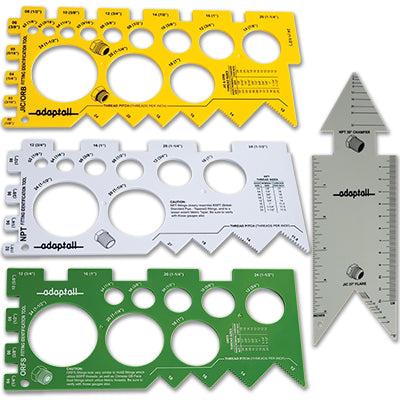

TGK-02 by AdaptAll | JIC, NPT, ORB, ORFS USA SAE Thread Gauge Kit TGK02 TGK-02-HW

TGK-02 by AdaptAll | JIC, NPT, ORB, ORFS USA SAE Thread Gauge Kit TGK02 TGK-02-HW

Save $3.46 Save $3.46
$31.15
$31.15 - $31.15
$31.15
$27.69
$27.69 - $27.69
$27.69

Adaptall Fitting Identification Gauge Kit for: JIC, NPT, ORB, ORFS Threads

The JIC, NPT, ORB, & ORFS Thread Gauge Kit is a convenient and affordable solution to identifying domestic threaded fittings in the field, shop, or store front.

Featuring 4 tools, this kit allows you to identify internal threads, external threads, thread pitch, as well as chamfer and nose cone angles specific to JIC and NPT.
Specifications for Variant SKU: TGK-02 Adaptall
Series: TGK Series
Sizes Covered
  • JIC & ORB Tool (x1):
    • 02 (1/8") 5/16-24
    • 03 (3/16") 3/8-24
    • 04 (1/4") 7/16-20
    • 05 (5/16") 1/2-20
    • 06 (3/8") 9/16-18
    • 08 (1/2") 3/4-16
    • 10 (5/8") 7/8-14
    • 12 (3/4") 1 1/16-12
    • 14 (7/8") 1 3/16-12
    • 16 (1") 1 5/16-12
    • 20 (1 1/4") 1 5/8-12
    • 24 (1 1/2") 1 7/8-12
  • NPT Tool (x1):
    • 02 (1/8") 1/8-27
    • 04 (1/4") 1/4-18
    • 06 (3/8") 3/8-18
    • 08 (1/2") 1/2-14
    • 12 (3/4") 3/4-14
    • 16 (1") 1-11.5
    • 20 (1 1/4") 1 1/4-11.5
    • 24 (1 1/2") 1 1/2-11.5
  • ORFS Tool (x1):
    • 04 (1/4") 9/16-18
    • 06 (3/8") 11/16-16
    • 08 (1/2") 13/16-16
    • 10 (5/8") 1-14
    • 12 (3/4") 1 3/16-12
    • 16 (1") 1 7/16-12
    • 20 (1 1/4") 1 11/16-12
    • 24 (1 1/2") 2-12
  • JIC & NPT Angle Gauge & Ruler (x1)
Thread Pitches Covered (Threads Per Inch)
  • 27 TPI
  • 24 TPI
  • 20 TPI
  • 18 TPI
  • 16 TPI
  • 14 TPI
  • 12 TPI
  • 11.5 TPI
Part Number Description
TGK-01 BSPP, BSPT, DIN, KOBELCO, KOMATSU, Metric Thread Gauge Kit
TGK-02 JIC, NPT, ORB, ORFS Thread Gauge Kit
Adaptall

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
