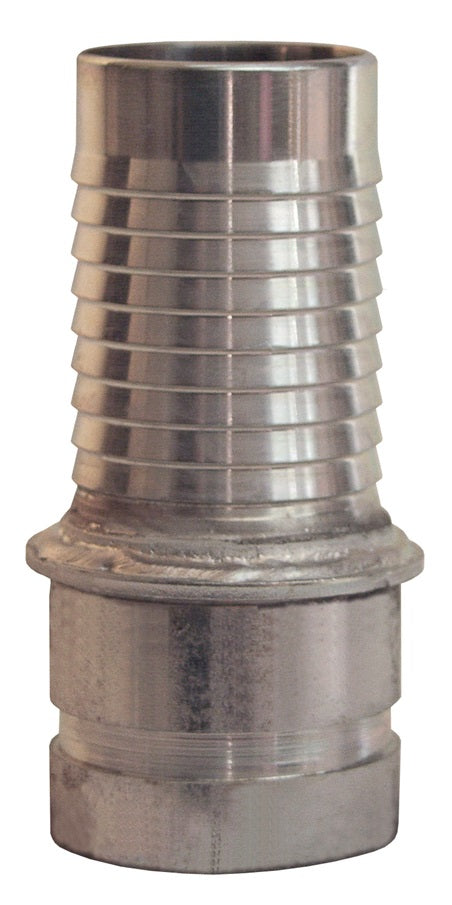

TGR48 by Dixon Valve | Holedall® External Swage Stem | Tubular Type | 3" Grooved End x 3" Hose ID | 316 Stainless Steel

Name: TGR48 by Dixon Valve | Holedall® External Swage Stem | Tubular Type | 3" Grooved End x 3" Hose ID | 316 Stainless Steel
Brand: Dixon
SKU: TGR48 Dixon
Price: 110.75 USD
Availability: InStock

Save $7.90

$118.65

$118.65 - $118.65

$118.65

$110.75

$110.75 - $110.75

$110.75

Dixon Valve
Holedall® External Swage Stem | Tubular Type | Grooved End x Hose Barb

Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as:

Oil & Suction Discharge Hose

Barge & Dock Loading and Unloading Hose

L.P. Gas Hose

Anhydrous Ammonia Hose

Acid Chemical Hose

Air & Water Hose

Quantity

Specifications for Variant SKU: TGR48 Dixon
Brand:	Holedall
Series:	TGR Style
Shape (Orientation):	Straight
Ends Configuration:	3in Grooved End, 3in Hose Barb
Material(s):	316 Stainless Steel
Compatible with the following Series:	Style F

Features:
Tubular type. Provides long-lasting efficiency and safety. Lightweight coupling consisting of ferrule and stem. Streamlined, no protrusions to snag on equipment.
Use:
Designed for hose ID's 1-1/4"" - 10". The ferrule size depends on the hose OD.
How It Works:
The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose. A hydraulic ram is the only piece of machinery necessary to accomplish the coupling. Couplings can be swaged or crimped.
Safety Notes:
Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products. Do not use a wrench or vice on ferrule. Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage. Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that. particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility. For applications other than the ones list, please consult Dixon.

Plated Carbon Steel Part Number	316 Stainless Steel Part Number	LONG STYLE Plated Carbon Steel Part Number	Size
TG24	TGR24	-	1-1/2"
TG32	TGR32	-	2"
TG40	TGR40	-	2-1/2"
TG48	TGR48	TGL48	3"
TG64	TGR64	TGL64	4"
TG80	-	-	5"
TG96	-	-	6"
TG128	-	-	8"
