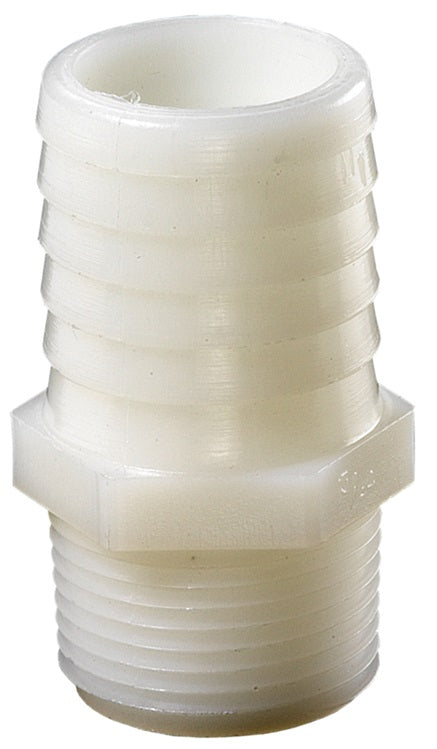

TN24 by Dixon Valve | Tuff-Lite® | Male Tubing Insert | 1/2" Male NPT x 1/4" Hose ID | Nylon

TN24 by Dixon Valve | Tuff-Lite® | Male Tubing Insert | 1/2" Male NPT x 1/4" Hose ID | Nylon | Pack of 50

Save $3.58 Save $3.58
$32.25
$32.25 - $32.25
$32.25
$28.67
$28.67 - $28.67
$28.67

Dixon Valve
Tuff-Lite® | Male Tubing Insert | Male NPT x Hose Barb


Package Quantity: 50 EA

Specifications for Variant SKU: TN24 Dixon | 50 |
Brand: Tuff-Lite
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/2in Male NPT
Material(s): Nylon
Safety Notes:
  • Nylon:
    • Nylon fittings should not be used with acid-based fertilizers, bromine, chlorine, fluorine, hydrochloric acid, iodine, nitric acid, phosphoric acid, sulfuric acid, or xylene.
    • Nylon should not be used with compressed gas.
    • Fittings are white.
  • Polypropylene:
    • Polypropylene fittings should not be used with aromatic hydrocarbons, carbon tetra-chloride, gasoline, hexane, kerosene, nitric acid, sodium hydrochlorite, toluene, trichloroethylene, or xylene.
    • Polypropylene should not be used with compressed gas.
    • Fittings are black.
Nylon
Part Number		 Polypropylene
Part Number		 Hose Size Male NPT
TN21 PPN21 1/4" 1/8"
TN22 PPN22 1/4" 1/4"
TN23 PPN23 1/4" 3/8"
TN24 PPN24 1/4" 1/2"
TN26 - 1/4" 3/4"
TN28 - 1/4" 1"
TN252 - 5/16" 1/4"
TN31 PPN31 3/8" 1/8"
TN32 PPN32 3/8" 1/4"
TN33 PPN33 3/8" 3/8"
TN34 PPN34 3/8" 1/2"
TN36 PPN36 3/8" 3/4"
TN41 - 1/2" 1/8"
TN42 PPN42 1/2" 1/4"
TN43 PPN43 1/2" 3/8"
TN44 PPN44 1/2" 1/2"
TN46 PPN46 1/2" 3/4"
TN53 - 5/8" 3/8"
TN54 PPN54 5/8" 1/2"
TN56 PPN56 5/8" 3/4"
TN63 - 3/4" 3/8"
TN64 PPN64 3/4" 1/2"
TN66 PPN66 3/4" 3/4"
TN68 PPN68 3/4" 1"
TN86 PPN86 1" 3/4"
TN88 PPN88 1" 1"
TN158 - 1-1/4" 1"
TN150 PPN150 1-1/4" 1-1/4"
TN1520 - 1-1/4" 1-1/2"
TN2015 - 1-1/2" 1-1/4"
TN200 PPN200 1-1/2" 1-1/2"
TN250 PPN250 2" 2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
