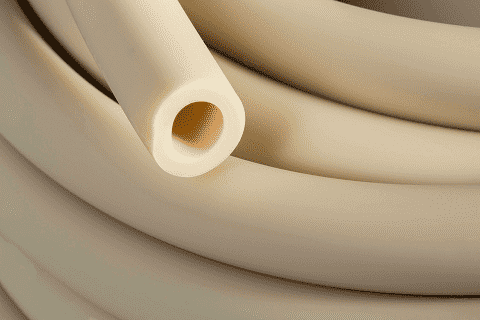

Tygon® AAL00003 Saint Gobain 1/16" I.D. x 3/16" O.D. x 1/16" Wall (A-60-F) 50' Package Length - Food Process Tubing

  • $28.46
  • (Unit Price: $0.56 per ft.)

SPECIFICATIONS

Application: Cosmetic Production, Food and Dairy Processing, Hot Beverage Dispensing, Water Purification Lines, Sanitizer Delivery, Soap Dispensing, Chemical Transfer, Pesticide/Fertilizer Delivery, Ink and Toner Feed Lines SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -75 deg. F (-60 deg. C) - 275 deg. F (135 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.2600, 3-A Sanitary Standards, NSF Standard 51
Literature: Tygon® Food Process Tubing (A-60-F) PDF
Other Features:
    • Long flex life in peristaltic pumps.
    • Compatible with virtually all common sanitizers and cleaners.
    • Ozone and UV light resistant.
    • Repeatedly autoclavable.
    • Chemically compatible with a wide range of fluids.
    • WARNING: Tygon® Food Process Tubing (A-60-F) is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 180 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 180 deg. F (in. Hg) Length
AAL00003 1/16" 3/16" 1/16" 1/4" 34 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AAL00007 1/8" 1/4" 1/16" 1/2" 19 PSI 12 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AAL00012 3/16" 5/16" 1/16" 3/4" 13 PSI 8 PSI 29.9 in. Hg 23.0 in. Hg 50ft
AAL00017 1/4" 3/8" 1/16" 1-1/4" 10 PSI 6 PSI 26.0 in. Hg 13.0 in. Hg 50ft
AAL00019 1/4" 1/2" 1/8" 3/4" 19 PSI** 12 PSI** 29.9 in. Hg 29.9 in. Hg 50ft
AAL00022 5/16" 7/16" 1/16" 1-1/2" 8 PSI 5 PSI 17.0 in. Hg 8.0 in. Hg 50ft
AAL00027 3/8" 1/2" 1/16" 2-1/4" 7 PSI 4 PSI 11.0 in. Hg 5.0 in. Hg 50ft
AAL00029 3/8" 5/8" 1/8" 1-1/4" 13 PSI** 8 PSI** 29.9 in. Hg 23.0 in. Hg 50ft
AAL00046 5/8" 7/8" 1/8" 3-1/4" 8 PSI** 5 PSI** 17.0 in. Hg 8.0 in. Hg 50ft
AAL00053 3/4" 1" 1/8" 4" 7 PSI** 4 PSI** 11.0 in. Hg 5.0 in. Hg 50ft
AAL00038 1/2" 3/4" 1/8" 2" 10 PSI** 6 PSI** 26.0 in. Hg 13.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 **Available in a reinforced construction for higher pressures Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
