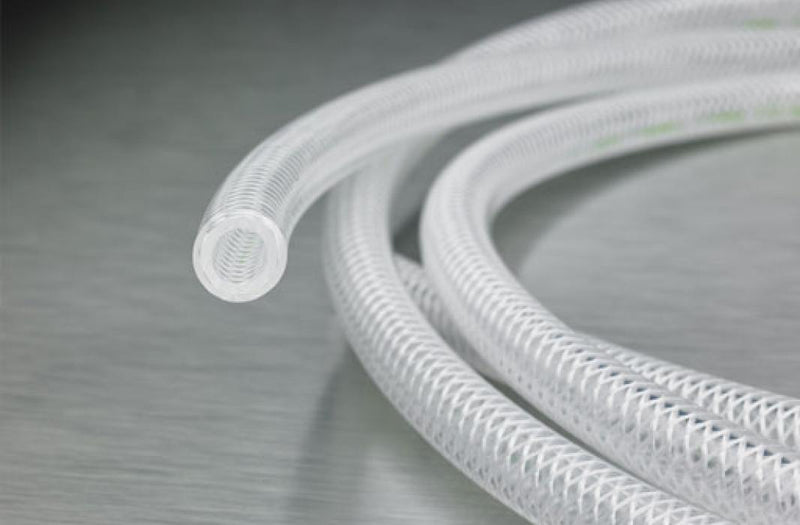

Tygon® ACX00019 Saint Gobain 1/4" I.D. x 1/2" O.D. x 1/8" Wall (Formulation 2475 IB) 50' Package Length - High Purity Pressure Tubing

  • $166.32
  • (Unit Price: $3.32 per ft.)

SPECIFICATIONS

Application: Deionized Water Systems, Sterile Fill Lines, Cell Harvest and Media Process Systems, Water for Injection (WFI) Transport, Preservative Fill Lines, Chemical Transfer Pharmaceutical and Cosmetic Processing SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: Tough Braid Reinforcement Cover: N/A
Temperature Range: -108 deg. F (-78 deg. C) - 125 deg. F (52 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, USP Class VI
Literature: Tygon® High Purity Pressure Tubing - Formulation 2475 I.B. (PDF)
Other Features:
    • Extremely Low Sorption to Aqueous Fluids
    • Tough Braid Reinforcement for Elevated Working Pressures
    • Plasticizer Free
    • WARNING: Tygon® High Purity Pressure Tubing - Formulation 2475 I.B. is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Max. Suggested Working Pressure at 125 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 125 deg. F (in. Hg) Length
ACX00019 1/4" 1/2" 1/8" 3/8" 150 PSI 85 PSI 29.9 in. Hg 10.0 in. Hg 50ft
ACX00029 3/8" 5/8" 1/8" 1" 135 PSI 80 PSI 29.9 in. Hg 10.0 in. Hg 50ft
ACX00038 1/2" 3/4" 1/8" 1-1/4" 125 PSI 70 PSI 29.9 in. Hg 10.0 in. Hg 50ft
ACX00046 5/8" 7/8" 1/8" 1-3/4" 120 PSI 65 PSI 29.9 in. Hg 10.0 in. Hg 50ft
ACX00054 3/4" 1-1/16" 5/32" 2-1/4" 120 PSI 65 PSI 29.9 in. Hg 10.0 in. Hg 50ft
ACX42064 1" 1-3/8" 3/16" 3-1/2" 100 PSI 55 PSI 29.9 in. Hg 10.0 in. Hg 25ft

* Safety factor of 4 to 1 ratio of burst pressure to working pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
