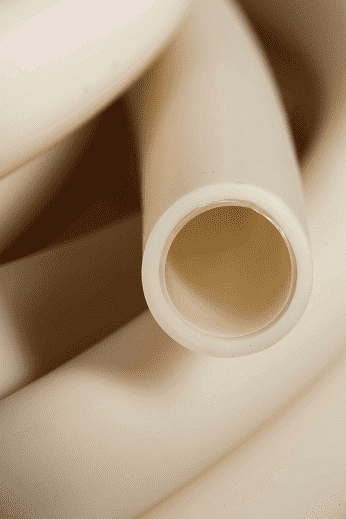

Tygon® AD300027 Saint Gobain 3/8" I.D. x 1/2" O.D x 1/16" Wall 50' Package Length - Chemical Tubing

  • $210.03
  • (Unit Price: $4.20 per ft.)


Application: Ink and Solvent Production, Battery Acid Filling, Specialty Chemical Production/Processing, Diagnostic Testing, Sensitive Fluid Transfer SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -75 deg. F (-60 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.1520
Literature: Tygon® Chemical Tubing (PDF)
Other Features:
  • Long flex life in perstaltic pumps.
  • Superior chemical resistance.
  • Plasticizer-free bore.
  • Meets FDA Criteria for food contact.
  • Resists absorption/adsorption.
  • Virtually unaffected by chemical sanitizers and cleaners.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Max. Suggested Working Pressure at 60 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 160 deg. F (in. Hg) Length
AD300007 1/8" 1/4" 1/16" 1/2" 33 PSI 14 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AD300012 3/16" 5/16" 1/16" 1" 29 PSI 10 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AD300017 1/4" 3/8" 1/16" 1-1/4" 20 PSI 8 PSI 29.9 in. Hg 15.0 in. Hg 50ft
AD300027 3/8" 1/2" 1/16" 2" 14 PSI 5 PSI 25.0 in. Hg 5.0 in. Hg 50ft
AD300038 1/2" 3/4" 1/8" 2-1/4" 16 PSI 8 PSI 29.9 in. Hg 25.0 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
