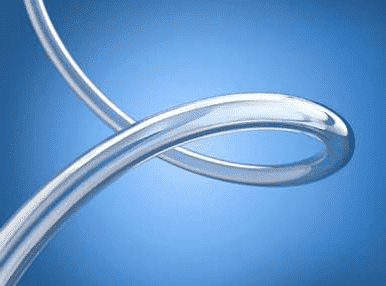

Tygon® ADF00010 5/32" I.D. x 9/32" O.D. x 1/16" Wall (ND-100-65) 50' Package Length - Medical/Surgical Tubing

ADF00010 Tygon® by Saint Gobain | 5/32" I.D. x 9/32" O.D. x 1/16" Wall | ND-100-65 | Medical/Surgical Tubing | 50' Package Length

Save $3.97 Save $3.97
$54.41
$54.41 - $54.41
$54.41
$50.44
$50.44 - $50.44
$50.44

Saint Gobain - Tygon® Medical/Surgical Tubing - Formulation ND-100-65

TYGON® ND 100-65, one of the medical industry's first non-DEHP tubing offerings, has been formulated specifically to meet the demanding challenges of applications such as dialysis, chemotherapy drug delivery and minimally invasive surgeries.

TYGON® ND 100-65 is made from a biocompatible non-DEHP polymer material developed specifically for blood contact medical device needs. It meets USP Class VI, ISO 10993, European Pharmacopoeia 3.1.1.2 and European REACH requirements. It is also non-hemolytic and non-pyrogenic.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ADF00010 Saint Gobain
Brand: Tygon
Series: ND-100-65
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.15625in
Outer Diameter: 0.28125in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: European Pharmacopoeia 3.1.1.2, ISO 10993 - In Vitro Platelet Aggregation, ISO 10993 - Unactivated Partial Thromboplastin Time Assay, ISO 10993-10, ISO 10993-3, ISO 10993-4, ISO 10993-5, USP - Chromogenic Testing, USP - Chromogenic Validation, USP - Class VI, USP - Physicochemical Testing - Elastomeric Closures, USP - Pyrogens, USP - Physicochemical Testing - Plastics

SPECIFICATIONS

Application: Minimally invasive devices, Blood and IV solutions, Dialysis equipment, Wound drainage, Inhalation equipment, Chemotherapy drug delivery, Kidney dialysis pumps, Peristaltic pumps, and Catheters SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -44 deg. F (-42 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications REACH compliant ISO 10993 - Cytotoxicity... Pass ISO 10993 - Genotoxicity... Pass ISO 10993 - In Vitro Platelet Aggregation... Pass ISO 10993 - Irritation/Sensitization... Pass ISO 10993 - Unactivated Partial Thromboplastin Time Assay... Pass USP Class VI... Pass USP Physicochemical Testing/Plastics... Pass USP Pyrogens... Pass USP - Chromogenic Testing... Pass USP - Chromogenic Validation... Pass USP Physicochemical Testing/Elastomeric Closures... Pass C3a Complement Activation Assay... Pass Hemocompatibility... Pass European Pharmacopoeia 3.1.1.2... Pass
Literature: Tygon® Medical/Surgical Tubing - Formulation ND-100-65 (PDF)
Other Features:
  • Crystal clear for easy visualization of fluid flow
  • Ideal for contact with bodily fluids
  • Non-wetting surface permits complete drainage
  • REACH compliant
  • Withstands EtO, gas and gamma sterilization
  • WARNING: Tygon® Medical/Surgical Tubing - Formulation ND-100-65 is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ADF00001 1/32" 3/32" 1/32" 1/8" 100 PSI 29.9 in. Hg 50ft
ADF00002 1/16" 1/8" 1/32" 1/4" 55 PSI 29.9 in. Hg 50ft
ADF00003 1/16" 3/16" 1/16" 1/8" 100 PSI 29.9 in. Hg 50ft
ADF00004 3/32" 5/32" 1/32" 3/8" 40 PSI 29.9 in. Hg 50ft
ADF00005 3/32" 7/32" 1/16" 1/4" 70 PSI 29.9 in. Hg 50ft
ADF00006 1/8" 3/16" 1/32" 1/2" 30 PSI 25 in. Hg 50ft
ADF00007 1/8" 1/4" 1/16" 3/8" 55 PSI 29.9 in. Hg 50ft
ADF00009 5/32" 7/32" 1/32" 3/4" 25 PSI 15 in. Hg 50ft
ADF00010 5/32" 9/32" 1/16" 1/2" 45 PSI 29.9 in. Hg 50ft
ADF00011 3/16" 1/4" 1/32" 1" 20 PSI 10 in. Hg 50ft
ADF00012 3/16" 5/16" 1/16" 5/8" 40 PSI 29.9 in. Hg 50ft
ADF00013 3/16" 3/8" 3/32" 1/8" 55 PSI 29.9 in. Hg 50ft
ADF00016 1/4" 5/16" 1/32" 1-5/8" 18 PSI 5 in. Hg 50ft
ADF00017 1/4" 3/8" 1/16" 1" 30 PSI 25 in. Hg 50ft
ADF00018 1/4" 7/16" 3/32" 3/4" 45 PSI 29.9 in. Hg 50ft
ADF00019 1/4" 1/2" 1/8" 5/8" 55 PSI 29.9 in. Hg 50ft
ADF00022 5/16" 7/16" 1/16" 1-3/8" 25 PSI 15 in. Hg 50ft
ADF00023 5/16" 1/2" 3/32" 1" 35 PSI 29.9 in. Hg 50ft
ADF00024 5/16" 9/16" 1/8" 7/8" 45 PSI 29.9 in. Hg 50ft
ADF00027 3/8" 1/2" 1/16" 1-3/4" 20 PSI 10 in. Hg 50ft
ADF00028 3/8" 9/16" 3/32" 1-3/8" 30 PSI 25 in. Hg 50ft
ADF00029 3/8" 5/8" 1/8" 1-1/8" 40 PSI 29.9 in. Hg 50ft
ADF00033 7/16" 5/8" 3/32" 1-3/4" 25 PSI 18 in. Hg 50ft
ADF00036 1/2" 5/8" 1/16" 2-7/8" 18 PSI 6 in. Hg 50ft
ADF00037 1/2" 11/16" 3/32" 2-1/8" 25 PSI 15 in. Hg 50ft
ADF00038 1/2" 3/4" 1/8" 1-3/4" 30 PSI 25 in. Hg 50ft
ADF00041 9/16" 3/4" 3/32" 2-1/2" 20 PSI 10 in. Hg 50ft
ADF00045 5/8" 13/16" 3/32" 3" 20 PSI 9 in. Hg 50ft
ADF00046 5/8" 7/8" 1/8" 2-3/8" 25 PSI 15 in. Hg 50ft
ADF00053 3/4" 1" 1/8" 3-1/4" 20 PSI 10 in. Hg 50ft
ADF00059 7/8" 1-1/8" 1/8" 4-1/8" 20 PSI 8 in. Hg 50ft
ADF00062 1" 1-1/4" 1/8" 5-1/8" 18 PSI 4 in. Hg 50ft
ADF02002 1/16" 1/8" 1/32" 1/4" 55 PSI 29.9 in. Hg 100ft
ADF02003 1/16" 3/16" 1/16" 1/8" 100 PSI 29.9 in. Hg 100ft
ADF02004 3/32" 5/32" 1/32" 3/8" 40 PSI 29.9 in. Hg 100ft
ADF02006 1/8" 3/16" 1/32" 1/2" 30 PSI 25 in. Hg 100ft
ADF02007 1/8" 1/4" 1/16" 3/8" 55 PSI 29.9 in. Hg 100ft
ADF02010 5/32" 9/32" 1/16" N/A N/A N/A 100ft
ADF02012 3/16" 5/16" 1/16" 5/8" 40 PSI 29.9 in. Hg 100ft
ADF02017 1/4" 3/8" 1/16" 1" 30 PSI 25 in. Hg 100ft
ADF02018 1/4" 7/16" 3/32" 3/4" 45 PSI 29.9 in. Hg 100ft
ADF02022 5/16" 7/16" 1/16" 1-3/8" 25 PSI 15 in. Hg 100ft
ADF02027 3/8" 1/2" 1/16" 1-3/4" 20 PSI 10 in. Hg 100ft
ADF02029 3/8" 5/8" 1/8" 1-1/8" 40 PSI 29.9 in. Hg 100ft
ADF02037 1/2" 11/16" 3/32" 2-1/8" 25 PSI 15 in. Hg 100ft
ADF02038 1/2" 3/4" 1/8" 1-3/4" 30 PSI 25 in. Hg 100ft
* Safety factor of 5:1 ratio of burst pressure to working pressure. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
