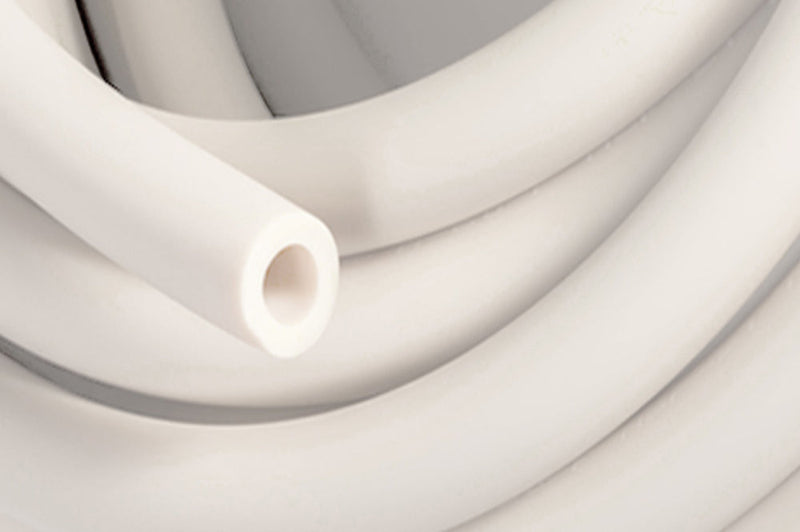

Tygon® AND00017 Saint Gobain 1/4" ID x 3/8" OD x 1/16" Wall 50' Package Length - E-65-F Food and Beverage Dispensing Tubing

AND00029 Tygon® by Saint Gobain | 3/8" ID x 5/8" OD x 1/8" Wall | E-65-F Food and Beverage Dispensing Tubing | 50' Package Length

Save $199.86 Save $199.86
$199.86
$199.86 - $199.86
$199.86
$0.00
$0.00 - $0.00
$0.00

Saint Gobain
Tygon® E-65-F Food and Beverage Dispensing Tubing

Formulated to withstand a temperature range from -112°F to 275°F, Tygon E-65-F tubing will not crack or deteriorate when used in demanding food and beverage applications. Extremely flexible, it resists kinks and retains its shape while installing quickly and easily. Its excellent flexural fatigue resistance makes it the absolute best choice for use in peristaltic pumps found in dispensing equipment.

Tygon E-65-F was evaluated by an independent lab** in a blind taste test. The results support that this tubing can be referred to as "taste and odor free" for applications using milk, similar dairy products, and cola syrup.

Tygon E-65-F tubing provides resistance to many food products, including those containing vegetable oils. It has excellent acid, alkali, and cleaner solution resistance, and is compatible with numerous oxidizing agents such as peroxide, hypochlorite and ozone.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: AND00029 Saint Gobain
Brand: Tygon
Series: E-65-F
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: Applicable FDA Requirements, EU Food Contact Regulation (EU) No 10/2011, NSF 51, Regulation (EC) No 1935/2004

SPECIFICATIONS

Application: Bag-in-box juice, Frozen yogurt, Soft-serve ice cream, Gelato SAE Rating: N/A
Other Ratings: N/A Tube: Tygon® E-65-F
Reinforcement: N/A Cover: N/A
Temperature Range: Temperature resistant from -112°F to 275°F Crimp Fittings: N/A
Specifications Regulation (EC) No 1935/2004, (EU) 10/2011, FDA, NSF-51
Literature: Tygon® E-65-F Food and Beverage Dispensing Tubing (PDF)
Other Features:
  • Taste and odor free.
  • Long flex life in peristaltic pumps.
  • Compatible with milk-based products, frozen yogurt, and soft-serve ice cream.
  • Chemically compatible with a wide range of cleaners and disinfectants.
  • Withstands pasteurization temperatures.
  • WARNING: Tygon® E-65-F Food and Beverage Dispensing Tubing is not intended as an implant material.
Part Number Inside
Diameter		 Outside
Diameter		 Wall
Thickness		 Min.
Bend Radius		 Vacuum Rating
at 73°F 		Max. Working Pressure*
at 73°F		 Max. Working Pressure*
at 180°F		 Length
in mm in mm in mm in mm inHg mmHg PSI bar PSI bar
AND00003 1/16" 1.60mm 3/16" 4.76mm 1/16" 1.60mm 3/16" 4.76mm 29.9 inHg 760 mmHg 32 PSI 2.20 bar 19 PSI 1.31 bar 50ft
AND00007 1/8" 3.17mm 1/4" 6.35mm 1/16" 1.60mm 5/8" 15.88mm 29.9 inHg 760 mmHg 19 PSI 1.31 bar 11 PSI 0.76 bar 50ft
AND00012 3/16" 4.76mm 5/16" 7.94mm 1/16" 1.60mm 1-1/8" 28.57mm 29.9 inHg 760 mmHg 15 PSI 1.03 bar 8 PSI 0.55 bar 50ft
AND00017 1/4" 6.35mm 3/8" 9.53mm 1/16" 1.60mm 1" 25.4mm 29.9 inHg 760 mmHg 13 PSI 0.90 bar 8 PSI 0.55 bar 50ft
AND00019 1/4" 6.35mm 1/2" 12.70mm 1/8" 3.17mm 5/8" 15.88mm 29.9 inHg 760 mmHg 19 PSI 1.31 bar 11 PSI 0.76 bar 50ft
AND00022 5/16" 7.94mm 7/16" 11.11mm 1/16" 1.60mm 2-1/2" 68.50mm 29.9 inHg 760 mmHg 11 PSI 0.76 bar 6 PSI 0.41 bar 50ft
AND00027 3/8" 9.52mm 1/2" 12.70mm 1/16" 1.60mm 3-1/4" 82.55mm 20.0 inHg 508 mmHg 10 PSI 0.69 bar 5 PSI 0.34 bar 50ft
AND00029 3/8" 9.53mm 5/8" 15.88mm 1/8" 3.18mm 1-7/8" 47.63mm 25.0 inHg 635 mmHg 11 PSI 0.76 bar 5 PSI 0.34 bar 50ft
AND00038 1/2" 12.70mm 3/4" 19.05mm 1/8" 3.17mm 1-3/4" 44.45mm 29.9 inHg 760 mmHg 13 PSI 0.90 bar 6 PSI 0.41 bar 50ft
AND00046 5/8" 15.87mm 7/8" 22.22mm 1/8" 3.17mm 2-1/2" 68.50mm 29.9 inHg 760 mmHg 11 PSI 0.76 bar 6 PSI 0.41 bar 50ft
AND00053 3/4" 19.05mm 1" 25.40mm 1/8" 3.18mm 3-3/8" 85.73mm 25.0 inHg 635 mmHg 10 PSI 0.69 bar 6 PSI 0.41 bar 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599

** Tufts University Sensory and Science Center, February 2018

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
