Tygon S3™ ACF00006 1/8" I.D. x 3/16" O.D. x 1/32" Wall (E-3603 Non-DEHP) 50' Package Length - Phthalate-Free Lab Tubing

ACF00006 Tygon S3™ by Saint Gobain | 1/8" I.D. x 3/16" O.D. x 1/32" Wall | E-3603 Non-DEHP | Phthalate-Free Lab Tubing | 50' Package Length

Save $3.72 Save $3.72
$19.64
$19.64 - $19.64
$19.64
$15.92
$15.92 - $15.92
$15.92
Saint Gobain
Tygon S3™ Phthalate-Free Lab Tubing - Formulation E-3603

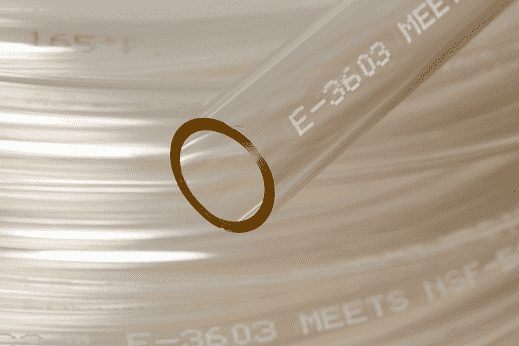

Saint-Gobain is proud to be among the first companies to offer sustainable flexible tubing products. The bio-based Tygon S3 line combines the high performance standards customers demand with an eco-friendly tubing design. Tygon S3 E-3603 is crystal clear and flexible, long-lasting and crack-resistant.

Tygon S3 E-3603 tubing is non-oxidizing and non-contaminating, and less permeable than rubber tubing. The glassy smooth inner bore helps prevent buildup to facilitate cleaning. Coils are marked at 1-foot intervals for easy measuring

Tygon S3 E-3603 tubing is specially formulated for resistance to flex-fatigue and abrasion. Tygon S3 E-3603 tubing offers superior life, which minimizes the labor and expense of replacement.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ACF00006 Saint Gobain
Brand: Tygon S3
Series: E-3603
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.1875in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: FDA 21 CFR Part 170.189, Japan Food Sanitation Law No 370/1959, NSF 51, REACH Compliant, Regulation (EC) No 1935/2004, Regulation (EU) No 10/2011

SPECIFICATIONS

Application: Peristaltic pump dispensing of juices, iced tea, water and other beverages
Beverage transfer under chilled or ambient conditions
Custom non-dairy creamer and flavor dispensing
Installations in tight confined spaces within complex food filling or flavoring systems
Dispensing of batter, pastes, and other low-viscosity food materials
Filtered water transfer (including reverse osmosis)
Transfer of plant-based food ingredients		 SAE Rating: N/A
Other Ratings: N/A Tube: Tygon S3 E-3603
Reinforcement: N/A Cover: N/A
Temperature Range: -51 deg. F (-46 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Specifications Applicable FDA Food Additive Regulations (21CFR170-189)
NSF51
REACH (EC) No 1907/2006
Regulation (EC) No 1935/2004 and Regulation (EU) No 10/2011
Japan Food Sanitation Law No 370, 1959
Contains no chemicals listed in California's Proposition 65
Literature: Tygon S3™ Phthalate-Free Lab Tubing - Formulation E3603 (PDF)
Other Features:
  • Slips easily over fittings and is easily maneuvered around tight bends
  • Smooth inner bore
  • Holds full vacuum at room temperature
  • Non-oxidizing
  • Does not contain BPA or phthalates
  • WARNING: Tygon S3™ Phthalate-Free Lab Tubing - Formulation E-3603 is not intended as an implant material.
Part Number Inside Diameter
(in.)		 Outside Diameter
(in.)		 Wall Thickness
(in.)		 Min. Bend Radius
(in.)		 Max. Working Pressure
at 73 deg. F (PSI)*		 Vacuum Rating
at 73 deg. F (in. Hg)		 Length
ACF00001 1/32" 3/32" 1/32" 1/8" 69 PSI 29.9 in. Hg 50ft
ACF00002 1/16" 1/8" 1/32" 1/4" 36 PSI 29.9 in. Hg 50ft
ACF02002 1/16" 1/8" 1/32" 1/8" 36 PSI 29.9 in. Hg 100ft
ACF00003 1/16" 3/16" 1/16" 1/8" 69 PSI 29.9 in. Hg 50ft
ACF00004 3/32" 5/32" 1/32" 3/8" 25 PSI 29.9 in. Hg 50ft
ACF02004 3/32" 5/32" 1/32" 3/8" 25 PSI 29.9 in. Hg 100ft
ACF00005 3/32" 7/32" 1/16" 1/4" 47 PSI 29.9 in. Hg 50ft
ACF00006 1/8" 3/16" 1/32" 1/2" 20 PSI 20 in. Hg 50ft
ACF00007 1/8" 1/4" 1/16" 3/8" 36 PSI 29.9 in. Hg 50ft
ACF02007 1/8" 1/4" 1/16" 3/8" 36 PSI 29.9 in. Hg 100ft
ACF00009 5/32" 7/32" 1/32" 3/8" 17 PSI 12 in. Hg 50ft
ACF00010 5/32" 9/32" 1/16" 1/2" 30 PSI 29.9 in. Hg 50ft
ACF02010 5/32" 9/32" 1/16" 1/2" 30 PSI 29.9 in. Hg 100ft
ACF00011 3/16" 1/4" 1/32" 1" 14 PSI 9 in. Hg 50ft
ACF00012 3/16" 5/16" 1/16" 5/8" 25 PSI 29.9 in. Hg 50ft
ACF02012 3/16" 5/16" 1/16" 5/8" 25 PSI 29.9 in. Hg 100ft
ACF00013 3/16" 3/8" 3/32" 1/2" 36 PSI 29.9 in. Hg 50ft
ACF00014 3/16" 7/16" 1/8" 3/8" 47 PSI 29.9 in. Hg 50ft
ACF00016 1/4" 5/16" 1/32" 1-5/8" 12 PSI 5 in. Hg 50ft
ACF00017 1/4" 3/8" 1/16" 1" 20 PSI 20 in. Hg 50ft
ACF02017 1/4" 3/8" 1/16" 1" 20 PSI 20 in. Hg 100ft
ACF00018 1/4" 7/16" 3/32" 3/4" 28 PSI 29.9 in. Hg 50ft
ACF00019 1/4" 1/2" 1/8" 1/2" 36 PSI 29.9 in. Hg 50ft
ACF02019 1/4" 1/2" 1/8" 1/2" 36 PSI 29.9 in. Hg 100ft
ACF00022 5/16" 7/16" 1/16" 1-3/8" 17 PSI 13 in. Hg 50ft
ACF00023 5/16" 1/2" 3/32" 1" 23 PSI 29.9 in. Hg 50ft
ACF00024 5/16" 9/16" 1/8" 7/8" 30 PSI 29.9 in. Hg 50ft
ACF00025 5/16" 5/8" 5/32" 3/4" 36 PSI 29.9 in. Hg 50ft
ACF00027 3/8" 1/2" 1/16" 1-1/2" 14 PSI 9 in. Hg 50ft
ACF00028 3/8" 9/16" 3/32" 1-3/8" 20 PSI 21 in. Hg 50ft
ACF00029 3/8" 5/8" 1/8" 1-1/8" 25 PSI 29.9 in. Hg 50ft
ACF00032 7/16" 9/16" 1/16" 2-1/4" 13 PSI 7 in. Hg 50ft
ACF00033 7/16" 5/8" 3/32" 1-3/4" 18 PSI 15 in. Hg 50ft
ACF00034 7/16" 11/16" 1/8" 1-3/8" 22 PSI 28 in. Hg 50ft
ACF00036 1/2" 5/8" 1/16" 2-7/8" 12 PSI 5 in. Hg 50ft
ACF00037 1/2" 11/16" 3/32" 2-1/4" 15 PSI 12 in. Hg 50ft
ACF02037 1/2" 11/16" 3/32" 2-1/4" 15 PSI 12 in. Hg 100ft
ACF00038 1/2" 3/4" 1/8" 1-1/2" 20 PSI 21 in. Hg 50ft
ACF00039 1/2" 13/16" 5/32" 1-1/2" 24 PSI 29.9 in. Hg 50ft
ACF00041 9/16" 3/4" 3/32" 2-1/2" 14 PSI 9 in. Hg 50ft
ACF00042 9/16" 13/16" 1/8" 2" 18 PSI 17 in. Hg 50ft
ACF00045 5/8" 13/16" 3/32" 3" 13 PSI 7 in. Hg 50ft
ACF00046 5/8" 7/8" 1/8" 2-3/8" 17 PSI 13 in. Hg 50ft
ACF00047 5/8" 15/16" 5/32" 2" 20 PSI 21 in. Hg 50ft
ACF00050 11/16" 7/8" 3/32" 3-1/2" 12 PSI 6 in. Hg 50ft
ACF00053 3/4" 1" 1/8" 3-1/4" 14 PSI 9 in. Hg 50ft
ACF00054 3/4" 1-1/16" 5/32" 2-3/4" 17 PSI 15 in. Hg 50ft
ACF00055 3/4" 1-1/8" 3/16" 2-3/8" 20 PSI 21 in. Hg 50ft
ACF00057 3/4" 1-1/4" 1/4" 2" 25 PSI 29.9 in. Hg 50ft
ACF00059 7/8" 1-1/8" 1/8" 4-1/8" 13 PSI 7 in. Hg 50ft
ACF00060 7/8" 1-3/16" 5/32" 3-1/2" 15 PSI 11 in. Hg 50ft
ACF00062 1" 1-1/4" 1/8" 4-3/4" 12 PSI 5 in. Hg 50ft
ACF00064 1" 1-3/8" 3/16" 4" 16 PSI 12 in. Hg 50ft
ACF00065 1" 1-1/2" 1/4" 3" 20 PSI 21 in. Hg 50ft
ACF00068 1-1/8" 1-1/2" 3/16" 4-1/2" 14 PSI 9 in. Hg 50ft
ACF00069 1-1/4" 1-1/2" 1/8" 7-7/8" 10 PSI 3 in. Hg 50ft
ACF00070 1-1/4" 1-5/8" 3/16" 5-1/2" 13 PSI 7 in. Hg 50ft
ACF00073 1-1/2" 1-7/8" 3/16" 7-1/4" 12 PSI 5 in. Hg 50ft
ACF00074 1-1/2" 2" 1/4" 5-7/8" 14 PSI 9 in. Hg 50ft
ACF00076 1-3/4" 2-1/4" 1/4" 7-1/2" 13 PSI 7 in. Hg 50ft
ACF00078 2" 2-1/2" 1/4" 9-3/8" 12 PSI 5 in. Hg 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
