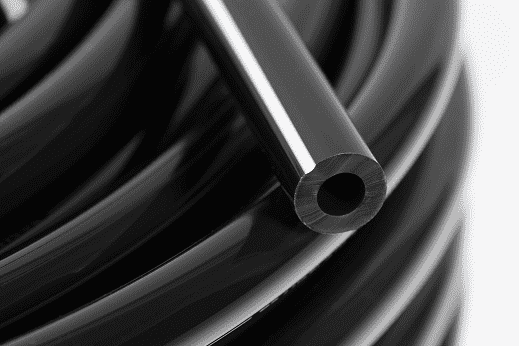

Tygon S3™ ACS02019 1/4" ID x 1/2" OD x 1/8" Wall Black A24-C 100' Package Length - Single Tube Black Vacuum (Air) Tubing

ACS02019 Tygon S3™ by Saint Gobain | 1/4" ID x 1/2" OD x 1/8" Wall | Black A24-C | Single Tube Black Vacuum Air Tubing | 100' Package Length

Minimum Order Quantity: 28 Boxes

Save $59.83 Save $59.83
$157.88
$157.88 - $157.88
$157.88
$98.05
$98.05 - $98.05
$98.05

Saint Gobain - Transflow S3® Single & Twin Tube A24-C Black Vacuum (Air) Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: ACS02019 Saint Gobain
Brand: Tygon S3
Series: A24-C
Hose Color(s): Black
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Application: Supply Air Transport SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -32 deg. F (-36 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA, 3-A
Literature: Transflow S3® Single & Twin Tube A24-C Black Vacuum (Air) Tubing (PDF)
Other Features:
  • Smooth Inner Surface is Less Susceptible To Particle Entrapment
  • Lightweight and Flexible for Quick Installation
  • Durability for Long and Reliable Service
  • WARNING: Transflow S3® Single & Twin Tube A24-C Black Vacuum (Air) Tubing is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ACS02019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 100ft
ACS02021 9/32" 17/32" 1/8" 3/4" 55 PSI 29.9 in. Hg 100ft
ACS02029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 100ft
ACS02034 7/16" 11/16" 1/8" 1-3/8" 39 PSI 29.9 in. Hg 100ft
ACS02038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 26.0 in. Hg 100ft
Twin Tube
ACS02916 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 100ft
ACS02917 9/32" 17/32" 1/8" 3/4" 55 PSI 29.9 in. Hg 100ft
ACS02918 3/8" 5/8" 1/8" 1-1/8" 55 PSI 29.9 in. Hg 100ft
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
