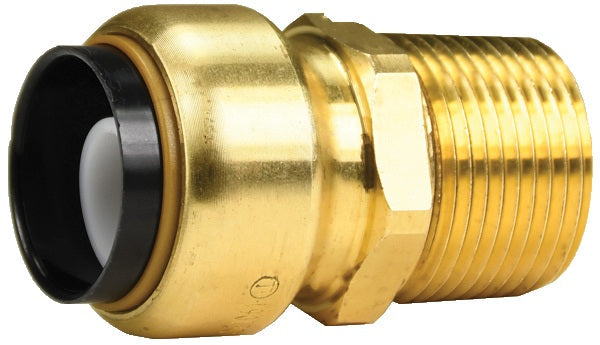

U140 by Dixon Valve | Tectite™ by Apollo® | Push to Connect Fitting | Male Connector | 1" Male NPT x 1" Tube Size | Forged Brass

Save $2.84

$25.56

$25.56 - $25.56

$25.56

$22.72

$22.72 - $22.72

$22.72

Dixon Valve
Tectite™ by Apollo® Push to Connect Fitting | Male Connector

For water, dry, clean air, or 100% glycol solutions only.

Connects copper, CPVC, and PEX pipe in any combination.

Approved for use underground and behind walls without access panels.

Comparable to Sharkbite®

Quantity

Specifications for Variant SKU: U140 Dixon
Brand:	Apollo
Series:	Tectite
Shape (Orientation):	Straight
Ends Configuration:	1in Push-to-Connect, 1in Male NPT
Material(s):	Brass
Special Properties:	Lead Free

Compatibility and Interchange:
Comparable to Sharkbite® Fittings.
Features:
No soldering, clamps, unions, or glue needed. Integral tube liner for PEX installations. Fittings can be rotated after assembly for easier installation in tight spaces. Easy to disconnect if needed. All Tectite by Apollo fittings are lead-free.
Material:
Forged Brass
Approvals:
Design certified and listed to ASSE 1061/NSF 61. Listed by IAPMO. Meets UPC, IPC, and cUPC requirements.
Specifications:
Pressure rating: 200 PSI at 200°F (93°C) Temperature Range: 32°F to 250°F (0°C to 121°C)

Part Number	Tube O.D.	Male NPT	Disconnect Clip (used to disconnect fitting from pipe)
U120	1/2"	1/2"	U710
U134	3/4"	3/4"	U712
U140	1"	1"	U714

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
