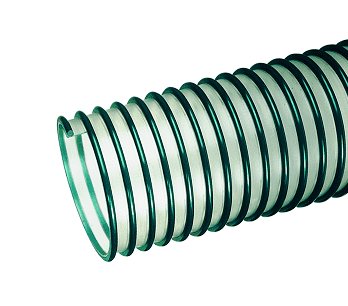

UV1-200X50 Tigerflex by Kuriyama | UV1 Series | Urevac Ducting/Material Handling Hose | 2" ID | Polyurethane | 50ft Length

Save $124.44

$435.54

$435.54 - $435.54

$435.54

$311.10

$311.10 - $311.10

$311.10

Kuriyama Tigerflex UV1™ Series Urevac Polyurethane Ducting/Material Handling Hose

Package Quantity: 50 FT

Specifications for Variant SKU: UV1-200X50 Kuriyama \| 50 \|
Brand:	Tigerflex
Series:	UV1 Series
Hose Color(s):	Green & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.39in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Concrete resurfacing dust collection, Ducting, Ventilation and fume removal, Material handling - standard duty Dust collection, Insulation blowing, Material chutes	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Durable Lightweight Polyurethane Tube - designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UV1-150X50	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22 in. Hg	14 in. Hg	0.75"	50ft	0.23 lbs
UV1-200X50	2"	50.8mm	2.39"	60.7mm	15 PSI	6 PSI	21 in. Hg	12 in. Hg	1.5"	50ft	0.32 lbs
UV1-250X50	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in. Hg	10 in. Hg	1.5"	50ft	0.39 lbs
UV1-300X50	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in. Hg	10 in. Hg	2.5"	50ft	0.55 lbs
UV1-400X50	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in. Hg	8 in. Hg	3"	50ft	0.77 lbs
UV1-500X50	5"	127.0mm	5.50"	139.7mm	7 PSI	3 PSI	10 in. Hg	7 in. Hg	4"	50ft	0.89 lbs
UV1-600X50	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	5"	50ft	1.15 lbs
UV1-800X50	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in. Hg	3 in. Hg	7"	50ft	1.75 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
