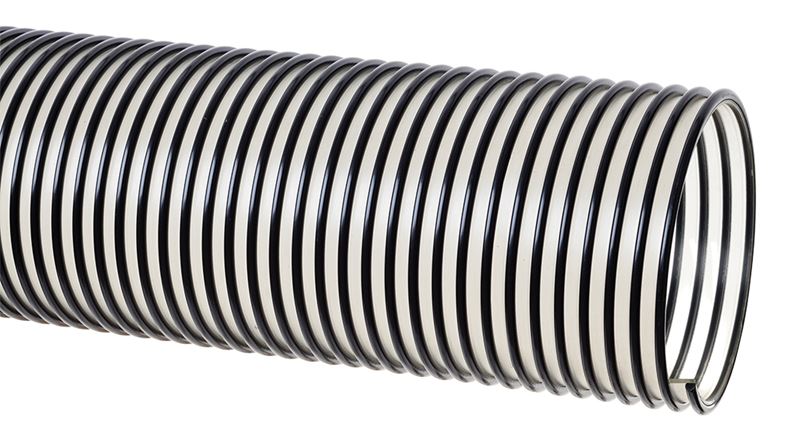

UV2-300X60 Kuriyama Tigerflex UV2 Series Urevac Standard Duty Polyurethane Lined Material Handling Hose - 3" - 60ft

UV2-300X60 Tigerflex by Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 3" ID | Polyurethane | 60ft Length

Save $86.22 Save $86.22
$862.22
$862.22 - $862.22
$862.22
$776.00
$776.00 - $776.00
$776.00

Kuriyama Tigerflex UV2™ Series Urevac Standard Duty Polyurethane Lined Material Handling Hose


Package Quantity: 60 FT

Specifications for Variant SKU: UV2-300X60 Kuriyama | 60 |
Brand: Tigerflex
Series: UV2 Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.54in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Application: Agricultural dry fertilizer, Air seeder lines, Dust collection, Material chutes, Material handling - standard duty, Wand hose SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UV2-150X60 1-1/2" 38.1mm 1.87" 47.5mm 25 PSI 10 PSI 22 in. Hg 16 in. Hg 1.5" 60ft 0.29 lbs
UV2-200X60 2" 50.8mm 2.47" 62.7mm 25 PSI 10 PSI 21 in. Hg 14 in. Hg 2.5" 60ft 0.40 lbs
UV2-250X60 2-1/2" 63.5mm 2.96" 75.2mm 20 PSI 8 PSI 19 in. Hg 12 in. Hg 3" 60ft 0.53 lbs
UV2-300X60 3" 76.2mm 3.54" 89.8mm 20 PSI 8 PSI 18 in. Hg 11 in. Hg 4" 60ft 0.67 lbs
UV2-400X60 4" 101.6mm 4.57" 116.1mm 15 PSI 7 PSI 13 in. Hg 9 in. Hg 6" 60ft 1.02 lbs
UV2-500X60 5" 127.0mm 5.58" 141.7mm 15 PSI 7 PSI 10 in. Hg 7 in. Hg 8" 60ft 1.22 lbs
UV2-600X60 6" 152.4mm 6.62" 168.1mm 10 PSI 5 PSI 7 in. Hg 5 in. Hg 10" 60ft 1.68 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
