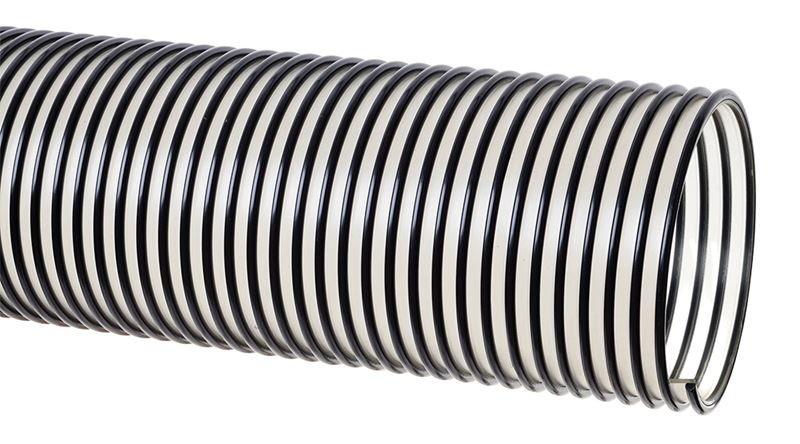

UV2-500X60 Kuriyama Tigerflex UV2 Series Urevac Standard Duty Polyurethane Lined Material Handling Hose - 5" - 60ft

UV2-500X60 Tigerflex by Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 5" ID | Polyurethane | 60ft Length

Save $168.27

$1,682.67

$1,682.67 - $1,682.67

$1,682.67

$1,514.40

$1,514.40 - $1,514.40

$1,514.40

Kuriyama Tigerflex UV2™ Series Urevac Standard Duty Polyurethane Lined Material Handling Hose

Package Quantity: 60 FT

Quantity

Specifications for Variant SKU: UV2-500X60 Kuriyama \| 60 \|
Brand:	Tigerflex
Series:	UV2 Series
Hose Color(s):	Black & Clear/Semi-Clear
Internal Diameter:	5in
Outer Diameter:	5.58in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Conductive Hose Cover, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Agricultural dry fertilizer, Air seeder lines, Dust collection, Material chutes, Material handling - standard duty, Wand hose	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UV2-150X60	1-1/2"	38.1mm	1.87"	47.5mm	25 PSI	10 PSI	22 in. Hg	16 in. Hg	1.5"	60ft	0.29 lbs
UV2-200X60	2"	50.8mm	2.47"	62.7mm	25 PSI	10 PSI	21 in. Hg	14 in. Hg	2.5"	60ft	0.40 lbs
UV2-250X60	2-1/2"	63.5mm	2.96"	75.2mm	20 PSI	8 PSI	19 in. Hg	12 in. Hg	3"	60ft	0.53 lbs
UV2-300X60	3"	76.2mm	3.54"	89.8mm	20 PSI	8 PSI	18 in. Hg	11 in. Hg	4"	60ft	0.67 lbs
UV2-400X60	4"	101.6mm	4.57"	116.1mm	15 PSI	7 PSI	13 in. Hg	9 in. Hg	6"	60ft	1.02 lbs
UV2-500X60	5"	127.0mm	5.58"	141.7mm	15 PSI	7 PSI	10 in. Hg	7 in. Hg	8"	60ft	1.22 lbs
UV2-600X60	6"	152.4mm	6.62"	168.1mm	10 PSI	5 PSI	7 in. Hg	5 in. Hg	10"	60ft	1.68 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
