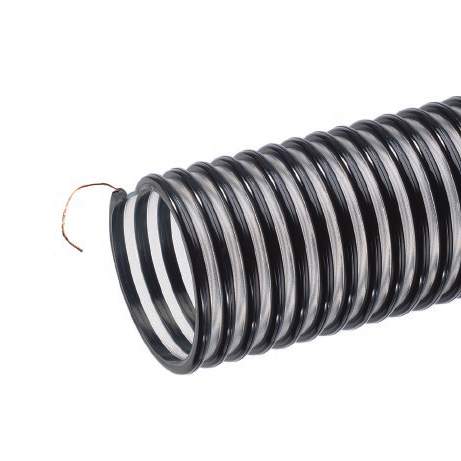

UV3-400X50 Kuriyama Tigerflex UV3 Series Urevac Heavy Duty Polyurethane Material Handling Hose With Grounding Wire - 4" - 50ft

UV3-400X50 Tigerflex by Kuriyama | UV3 Series | Urevac Heavy Duty Material Handling Hose With Grounding Wire | 4" ID | Polyurethane | 50ft Length

Save $115.64

$1,162.97

$1,162.97 - $1,162.97

$1,162.97

$1,047.33

$1,047.33 - $1,047.33

$1,047.33

Kuriyama Tigerflex UV3™ Series Urevac Heavy Duty Polyurethane Material Handling Hose With Grounding Wire

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: UV3-400X50 Kuriyama \| 50 \|
Brand:	Tigerflex
Series:	UV3 Series
Hose Color(s):	Black & Clear/Semi-Clear
Internal Diameter:	4in
Outer Diameter:	4.66in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Dust collection, Trench suction, Material handling - heavy duty abrasive, Milling machine scrap recovery, Plastic processing equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-Ply Polyurethane
Reinforcement:	Rigid PVC Helix and Grounding Wire.	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Thick Abrasion Resistant Single-Ply Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
UV3-300X100	3"	76.2mm	3.60"	91.4mm	40 PSI	20 PSI	Full	28 in. Hg	9"	100ft	0.91 lbs
UV3-300X50	3"	76.2mm	3.60"	91.4mm	40 PSI	20 PSI	Full	28 in. Hg	9"	50ft	0.91 lbs
UV3-400X100	4"	101.6mm	4.66"	118.4mm	35 PSI	17 PSI	28 in. Hg	25 in. Hg	12"	100ft	1.50 lbs
UV3-400X50	4"	101.6mm	4.66"	118.4mm	35 PSI	17 PSI	28 in. Hg	25 in. Hg	12"	50ft	1.50 lbs
UV3-500X50	5"	127.0mm	5.50"	145.0mm	35 PSI	17 PSI	28 in. Hg	25 in. Hg	14"	50ft	1.82 lbs
UV3-600X50	6"	152.4mm	6.65"	172.0mm	30 PSI	15 PSI	25 in. Hg	20 in. Hg	16"	50ft	2.24 lbs
UV3-800X50	8"	203.5mm	8.76"	223.0mm	30 PSI	15 PSI	25 in. Hg	20 in. Hg	18"	50ft	3.00 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
