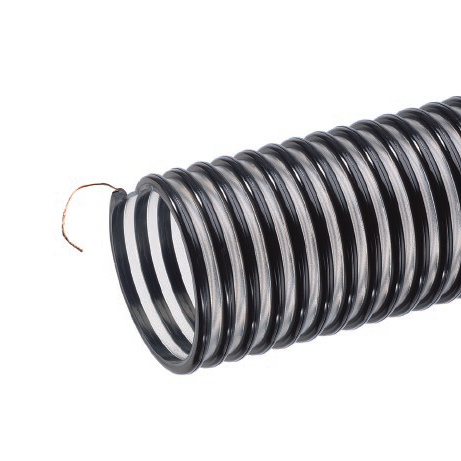

UV3-800X50 Kuriyama Tigerflex UV3 Series Urevac Heavy Duty Polyurethane Material Handling Hose With Grounding Wire - 8" - 50ft

UV3-800X50 Tigerflex by Kuriyama | UV3 Series | Urevac Heavy Duty Material Handling Hose With Grounding Wire | 8" ID | Polyurethane | 50ft Length

Save $923.16 Save $923.16
$3,231.06
$3,231.06 - $3,231.06
$3,231.06
$2,307.90
$2,307.90 - $2,307.90
$2,307.90

Kuriyama Tigerflex UV3™ Series Urevac Heavy Duty Polyurethane Material Handling Hose With Grounding Wire


Package Quantity: 50 FT

Specifications for Variant SKU: UV3-800X50 Kuriyama | 50 |
Brand: Tigerflex
Series: UV3 Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 8in
Outer Diameter: 8.76in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Dust collection, Trench suction, Material handling - heavy duty abrasive, Milling machine scrap recovery, Plastic processing equipment SAE Rating: N/A
Other Ratings: N/A Tube: Single-Ply Polyurethane
Reinforcement: Rigid PVC Helix and Grounding Wire. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Thick Abrasion Resistant Single-Ply Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UV3-300X100 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28 in. Hg 9" 100ft 0.91 lbs
UV3-300X50 3" 76.2mm 3.60" 91.4mm 40 PSI 20 PSI Full 28 in. Hg 9" 50ft 0.91 lbs
UV3-400X100 4" 101.6mm 4.66" 118.4mm 35 PSI 17 PSI 28 in. Hg 25 in. Hg 12" 100ft 1.50 lbs
UV3-400X50 4" 101.6mm 4.66" 118.4mm 35 PSI 17 PSI 28 in. Hg 25 in. Hg 12" 50ft 1.50 lbs
UV3-500X50 5" 127.0mm 5.50" 145.0mm 35 PSI 17 PSI 28 in. Hg 25 in. Hg 14" 50ft 1.82 lbs
UV3-600X50 6" 152.4mm 6.65" 172.0mm 30 PSI 15 PSI 25 in. Hg 20 in. Hg 16" 50ft 2.24 lbs
UV3-800X50 8" 203.5mm 8.76" 223.0mm 30 PSI 15 PSI 25 in. Hg 20 in. Hg 18" 50ft 3.00 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.
