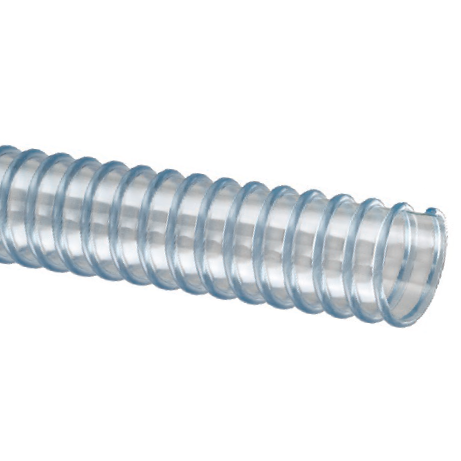

UVF500X50 Kuriyama Tigerflex UVF Series Food Grade Polyurethane Ducting/Material Handling Hose - 5" - 50ft

UVF500X50 Tigerflex by Kuriyama | UVF Series | Food Grade Ducting/Material Handling Hose | 5" ID | Polyurethane | 50ft Length

Save $98.30 Save $98.30
$989.63
$989.63 - $989.63
$989.63
$891.33
$891.33 - $891.33
$891.33

Kuriyama Tigerflex UVF™ Series Food Grade Polyurethane Ducting/Material Handling Hose


Package Quantity: 50 FT

Specifications for Variant SKU: UVF500X50 Kuriyama | 50 |
Brand: Tigerflex
Series: UVF Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.50in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Ducting, ventilation and fume removal, Food grade blower and ducting systems, Food grade Material handling - standard duty, Dust collection, Pharmaceutical product transfer SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE, FDA, RoHS, USDA
Other Features:
  • Durable Lightweight Polyurethane Tube - designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses.
  • Food Grade Materials - Hose complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow". Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Hose - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UVF150X50 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22in. Hg 14in. Hg 1" 50ft 0.23 lbs
UVF200X50 2" 50.8mm 2.39" 60.7mm 15 PSI 6 PSI 21 in. Hg 12 in. Hg 1.5" 50ft 0.32 lbs
UVF250X50 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19in. Hg 10in. Hg 1.5" 50ft 0.39 lbs
UVF300X50 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in. Hg 10 in. Hg 2.5" 50ft 0.55 lbs
UVF400X50 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in. Hg 8 in. Hg 3" 50ft 0.77 lbs
UVF500X50 5" 127.0mm 5.50" 139.7mm 7 PSI 3 PSI 10 in. Hg 7 in. Hg 4" 50ft 0.89 lbs
UVF600X50 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 5" 50ft 1.15 lbs
UVF800X50 8" 203.2mm 8.59" 218.1mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 7" 50ft 1.75 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent.
