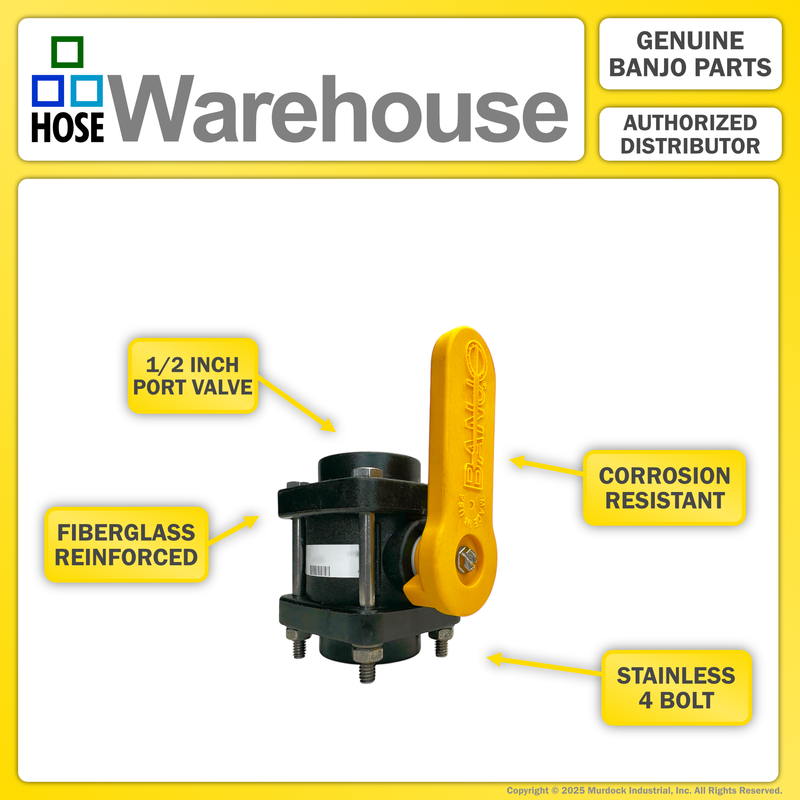

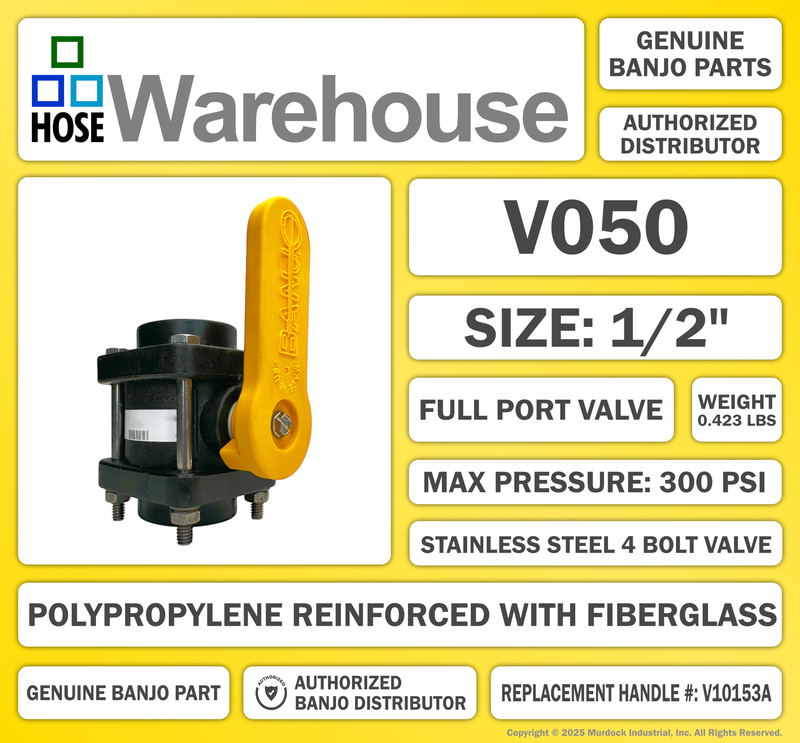

V050 by Banjo | Full Port 4 Bolt Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Opening Thru Ball: 3/4" | 300 PSI | Polypropylene

V050 by Banjo | Full Port 4 Bolt Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Opening Thru Ball: 3/4" | 300 PSI | Polypropylene

Save $18.53

$46.33

$46.33 - $46.33

$46.33

$27.80

$27.80 - $27.80

$27.80

Banjo Valves
Bolted Ball Valves - 4 Bolt Valves - Polypropylene - Female NPT x Female NPT

Quantity

Specifications for Variant SKU: V050 Banjo
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Applications:
Fluids
Features:
FKM (viton type) seals Precision molded polypropylene is reinforced with fiberglass for additional strength Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats PTFE self-lubricating stem bush ings and seats cannot stick or bind Stainless steel bolts


Part Number	Port Type	Female NPT	Opening Thru Ball	Max. PSI	Dimensions
Part Number	Port Type	Female NPT	Opening Thru Ball	Max. PSI	A	B	C	D	E
V050	Full	1/2" x 1/2"	3/4"	300	3.44"	3.37"	2.06"	1.25"	2.50"
V075	Full	3/4" x 3/4"	3/4"	300	3.44"	3.37"	2.06"	1.25"	2.50"
V100	Standard	1" x 1"	3/4"	300	3.44"	3.37"	2.06"	1.25"	2.50"
V100FP	Full	1" x 1"	1"	300	4.19"	3.31"	2.44"	1.81"	3.50"
V125	Standard	1-1/4" x 1-1/4"	1"	300	4.19"	3.31"	2.44"	1.81"	3.50"
V125FP	Full	1-1/4" x 1-1/4"	1-1/2"	300	4.72"	5.90"	2.70"	1.92"	3.50"
V150	Full	1-1/2" x 1-1/2"	1-1/2"	300	4.72"	5.90"	2.70"	1.92"	3.50"
V200	Standard	2" x 2"	1-1/2"	300	4.72"	5.90"	2.70"	1.92"	3.50"

Replacement Parts for V050, V075, V100

Item	Part Number	Description	Quantity Required
1	V07151A	Stem	1
2	V10153A	Handle	1
3	V07254	Valve Body	1
4	V07155*	Valve Ball	1
5	V07257	3/4" End Plate	2
5	V07256	1" End Plate	2
7	V07264*	FKM (viton type) Valve Body O-Ring	2
9	V07060*	Thrust Washer	1
11	V07018	1/4" SS Lock Washer	4
12	V07019	1/4" SS Nut	4
13	V10020A	#10 x 3/4" SS Handle Bolt	1
14	V07021A	SS Handle Washer	1
15	V07163*	FKM (viton type) Stem O-Ring	1

* INCLUDED in the Repair Kit
