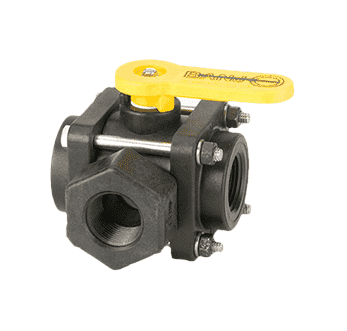

V100SL Banjo Polypropylene 3-Way Ball Valve - Side Load - 1" Female NPT - Opening Thru Ball: 1" - 100 PSI - Straight Handle

V100SL by Banjo | 3-Way Ball Valve | Side Load | 1" Female NPT | Opening Thru Ball: 1" | 100 PSI | Straight Handle | 200 PSI | Polypropylene

Save $5.01 Save $5.01
$45.06
$45.06 - $45.06
$45.06
$40.05
$40.05 - $40.05
$40.05

Banjo Valves
Bolted Ball Valves - 3-Way Ball Valves - Side Load - Polypropylene - 4 Bolt Valves
Specifications for Variant SKU: V100SL Banjo
Shape (Orientation): Tee
Ends Configuration: 1in Female NPT, 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • SIDE LOAD: Directional flow, right or left. Valve cannot be turned off.
  • Stainless steel bolts
  • Precision molded in polypropylene. Polypropylene is reinforced with fiber glass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bushings and seats
  • FKM (viton type) body seals
Part Number Female NPT x Female NPT x Female NPT Opening
Thru Ball		 Max PSI Handle Type
V075SL 3/4" x 3/4" x 3/4" 1" 200 PSI Straight
V100SL 1" x 1" x 1" 1" 200 PSI Straight
V125SL 1-1/4" x 1-1/4" x 1-1/4" 1-1/2" 300 PSI T
V150SL 1-1/2" x 1-1/2" x 1-1/2" 1-1/2" 225 PSI T
V200SL 2" x 2" x 2" 2" 225 PSI Straight
Replacement Parts for V125SL, V150SL
Item Part Number Description Quantity Required
1 V20344S 1-1/4" Valve Body 1
1 V20354S 1-1/2" Valve Body 1
2 V20267 1-1/4" End Plate 2
2 2
3 V20151M Stem 1
4 V20153 Handle-Straight 1
5 V20355S Ball 1
6 VE20258A Seats 2
7 V20060 Thrust Bushing 1
8 V20159 Upper Stem Bushing 1
9 V20163 FKM (viton type) Stem O-Ring 1
10 V20264 FKM (viton type) Body O-Ring 2
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
