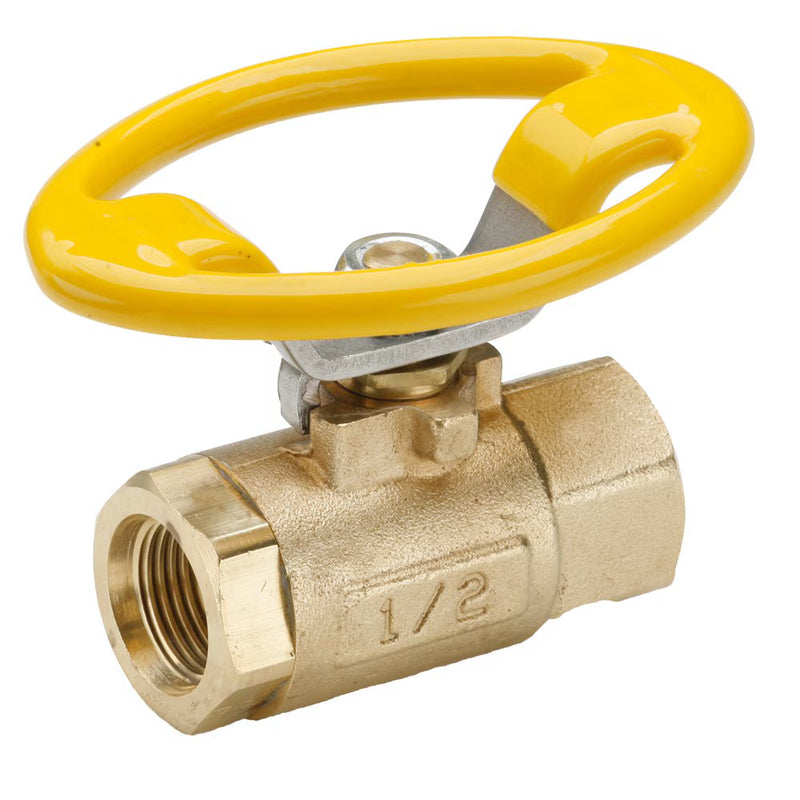

V500P-8-21 by Parker | Ball Valves | 1/2" Female PTF Pipe Thread | 1-1/16" Hex (B) | 1-1/16" (C) | 3.49" Length | Straight | Brass

V500P-8-21 by Parker | Ball Valves | 1/2" Female PTF Pipe Thread | 1-1/16" Hex (B) | 1-1/16" (C) | 3.49" Length | Straight | Brass

Save $3.69 Save $3.69
$46.32
$46.32 - $46.32
$46.32
$42.63
$42.63 - $42.63
$42.63

by Parker Hannifin
Ball Valves Brass Series 500:Oval Handle, Female Pipe Ends V500P-X-21
Specifications for Variant SKU: V500P-8-21 Parker
Series: V500P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
  • VV-Valve, vented
  • VVP-Valve, vented, padlocking handle
Type:
  • 500-Female/Female PTF ports
Material:
  • P-Brass
  • PN-Nickel plated
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
  • Vented up to 250 PSI (17.2 bar)
Part Number Pipe Thread (PTF) Hex (B) Hex (C) H L M N Flow Diameter (D)
V500P-4-21 1/4" 15/16" 15/16" 1.74" 3.49" 2.03" 2.38" .375"
V500P-6-21 3/8" 15/16" 15/16" 1.74" 3.49" 2.03" 2.38" .375"
V500P-8-21 1/2"* 1-1/16" 1-1/16" 1.74" 3.49" 2.20" 2.49" .500"
V500P-12-21 3/4"** 1-1/4" 1-5/16" 1.74" 3.48" 2.42" 2.71" .685"
V500P-16-21 1"** 1-1/2" 1-9/16" 1.74" 3.48" 2.75" 2.99" .875"

*PTF Special Short. **PTF SPL Extra Short
