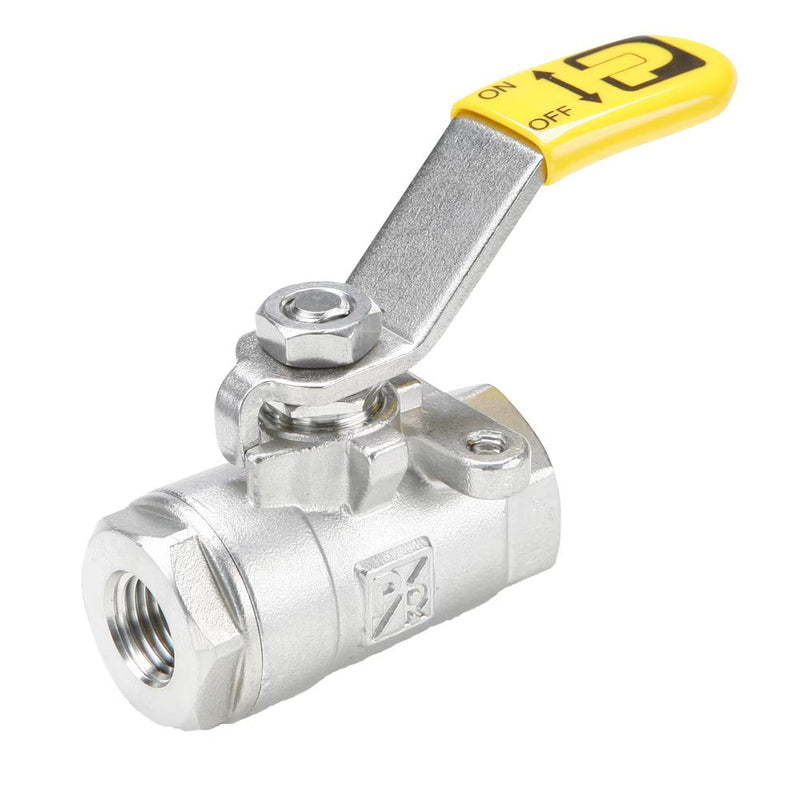

V502SS-4-20 by Parker | Ball Valve | 1/4" Female NPT Thread | 15/16" Hex (B/C) | 3.32" Length | Straight | Stainless Steel

V502SS-4-20 by Parker | Ball Valve | 1/4" Female NPT Thread | 15/16" Hex (B/C) | 3.32" Length | Straight | Stainless Steel

Save $0.82 Save $0.82
$89.63
$89.63 - $89.63
$89.63
$88.81
$88.81 - $88.81
$88.81

by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Short Handle, Female Pipe Ends, Panel Mount V502SS-X-20
Specifications for Variant SKU: V502SS-4-20 Parker
Series: V502SS Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): PTFE
Special Properties: Silicone Free, Valved
Product Features:
  • CF-8M Stainless Steel body
  • Stainless Steel ball
  • PTFE Seats/Seals
  • Stainless Steel handle
  • Silicone Free
Style:
  • V-Valve
  • VP-Valve, Padlocking
Type:
  • 502-Panel Mount Female/Female NPT Ports
Material:
  • SS – Stainless Steel
Options:
  • 20-Short Handle
  • 21-Oval Handle
  • 35-Welded Retainer Nut
Specification:
Temperature Range: 0° to +400° F (-17.7° to +204.4° C)
Pressure Range:
  • 1/4” – 1”: 2000 PSI (137.8 bar)
  • 1 1/4” – 2”: 1500 PSI (103.4 bar)
  • Vacuum service 28 inches Hg
Approvals: Meets material requirements of NACE MR-01-75
Part Number Pipe Thread (NPT) Hex (B / C) G H L M N Flow Diameter (D)
V502SS-4-20 1/4" 15/16" 1.12" 2.28" 3.32" 2.07" 2.53" .375"
V502SS-6-20 3/8" 15/16" 1.12" 2.28" 3.32" 2.07" 2.53" .375"
V502SS-8-20 1/4" 1-1/16" 1.12" 2.22" 3.37" 2.25" 2.63" .500"
