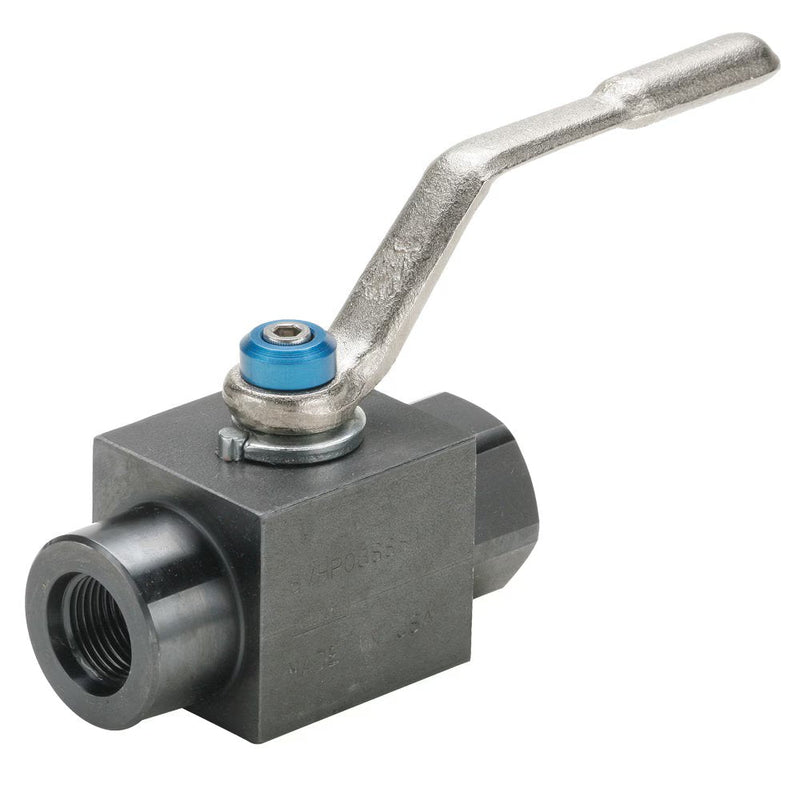

V506HP-4 by Parker | Ball Valve | 7/16" SAE J1926-1 Thread | 5.87" Length | Straight | Carbon Steel

Save $2.69

$73.70

$73.70 - $73.70

$73.70

$71.01

$71.01 - $71.01

$71.01

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:7,250 PSI Female-Female Straight Thread Ends V506HP

Quantity

Specifications for Variant SKU: V506HP-4 Parker
Series:	V506HP Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Delrin, Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Coated, Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball Delrin with Molybdenum Disulphide Seats Nitrile O-rings Stem Seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female NPT Ports 506-Female/Female SAE Straight Thread Ports
Material:	HP-High Pressure Carbon Steel
Temperature Range:	-10° to +210° F (-23.3° to 98.8° C)
Pressure Range:	6000 PSI (413.6 bar)* (Dependent on size) 7250 PSI (9.9 bar) (*Dependent on size)


Part Number	SAE J1926-1 Thread	B	C	H	L	M	N	Flow Diameter (D)
V506HP-4	7/16"-20 UNF	.57"	1.30"	4.61"	1.57"	2.72"	3.22"	.200"
V506HP-6	9/16"-18 UNF	.57"	1.50"	4.61"	1.70"	2.83"	3.42"	.390"
V506HP-8	3/4"-16 UNF	.68"	1.57"	4.61"	1.89"	3.25"	3.50"	.510"
V506HP-16	1-5/16"-12 UNF	.66"	2.76"	6.73"	2.92"	4.75"	5.45"	.790"
