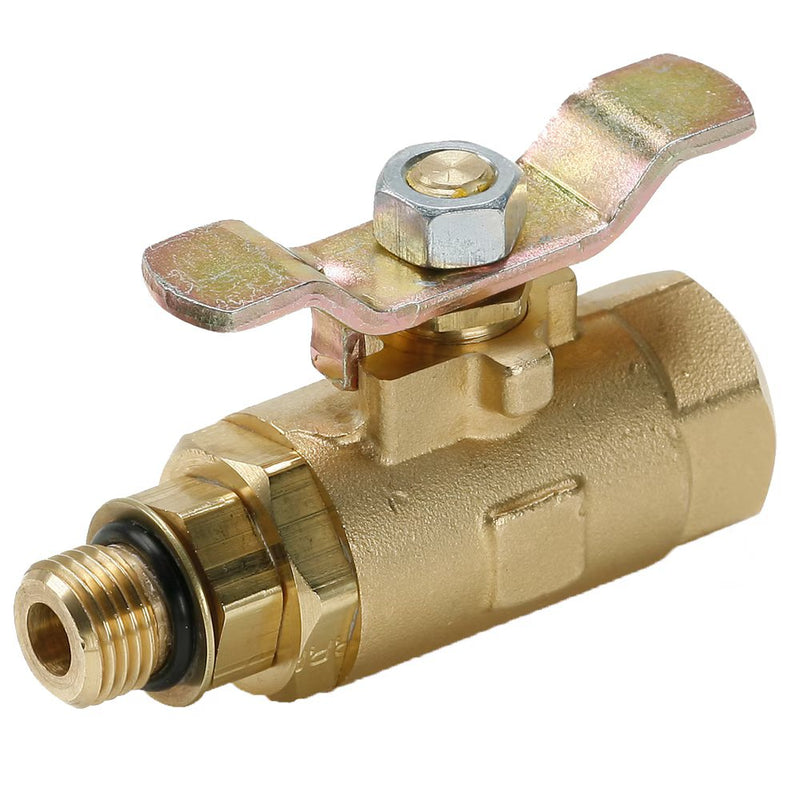

V510P-10-04 by Parker | Ball Valves | 7/8" Male-Female Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 3.90" Length | Straight | Brass

V510P-10-04 by Parker | Ball Valves | 7/8" Male-Female Thread | 1-1/4" Hex (B) | 1-5/16" Hex (C) | 3.90" Length | Straight | Brass

Save $7.94 Save $7.94
$98.02
$98.02 - $98.02
$98.02
$90.08
$90.08 - $90.08
$90.08

by Parker Hannifin
Ball Valves Brass Series 510:Tee Handle, Straight Thread O-Ring Port V510P-X-04
Specifications for Variant SKU: V510P-10-04 Parker
Series: V510P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 510-Male/Female Straight Thread O-ring SAE J1926
Material:
  • P-Brass
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
  • Vented up to 250 PSI (17.2 bar)
Part Number Straight Thread Hex (B) Hex (C) H L M N Flow Diameter (D)
V510P-4-04 7/16"-20 15/16" 15/16" 3.96" 5.61" 2.85" 1.87" .188"
V510P-6-04 9/16"-18 15/16" 15/16" 1.25" 2.50" 2.92" 1.87" .281"
V510P-8-04 3/4"-16 1-1/16" 1-1/16" 1.25" 2.50" 3.17" 1.98" .422"
V510P-10-04 7/8"-14 1-1/4" 1-5/16" 1.25" 2.50" 3.90" 2.20" .500"
V510P-12-04 1-1/16"-12 1-1/4" 1-5/16" 1.25" 2.50" 4.03" 2.81" .656"
V510P-16-04 1-5/16"-12 1-1/2" 1-9/16" 1.25" 2.50" 4.28" 2.48" .875"
