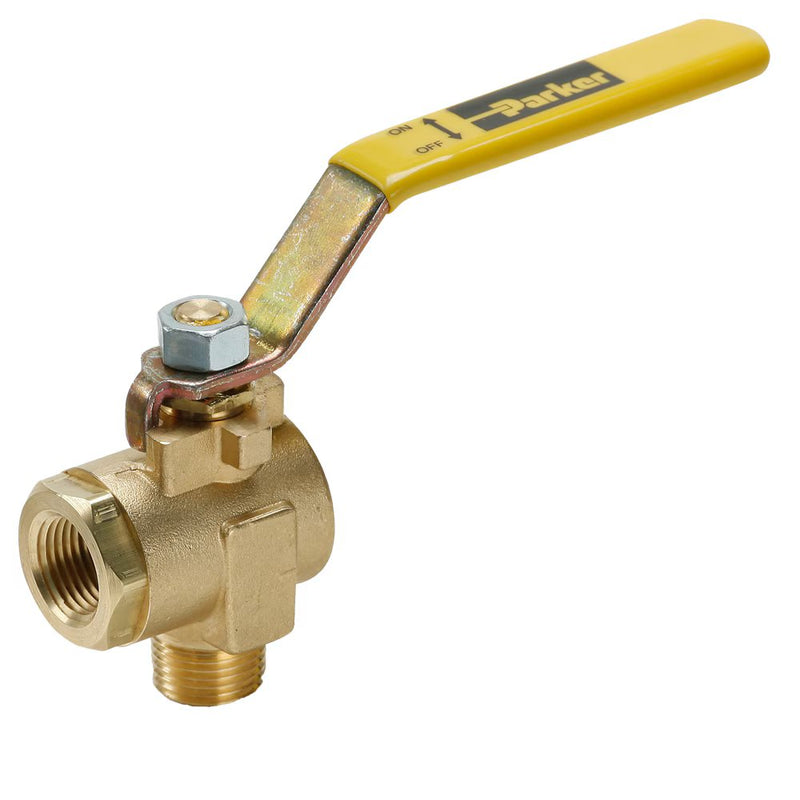

V590P-8-04 by Parker | Ball Valves | 1/2" Male-Female PTF Pipe Thread | 1-1/16" Hex | 4.88" Length | 90° Elbow | Brass

Save $2.72

$34.43

$34.43 - $34.43

$34.43

$31.71

$31.71 - $31.71

$31.71

by Parker Hannifin
Ball Valves Brass Series 590/591:Lever Handle, 90° Flow, Male-Female Pipe Ends V590P-X-04

Quantity

Specifications for Variant SKU: V590P-8-04 Parker
Series:	V590P Series
Shape (Orientation):	90° Elbow
Material(s):	Brass, Chrome-Plated Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Forged brass body Chrome plated brass ball PTFE seats/seals Steel handle
Style:	V-Valve
Type:	590-Male/Female 591-Male/Female
Material:	P-Brass
Options:	04-Lever Handle 08-Unmarked yellow vinyl handle cover
Temperature Range:	-50° to +350° F (-45.5° to +176.6° C)
Pressure Range:	250 PSI (17.2 bar) Saturated Steam up to 150 PSI (10.3 bar) Vacuum Service to 29 Inches Hg


Part Number	Straight PTF Thread	Hex	H	K	L	M	N	Flow Diameter (D)
V590P-4-04	1/4"	15/16"	3.96"	1.08"	4.96"	1.00"	3.02"	.375"
V590P-6-04	3/8"	15/16"	3.96"	1.09"	4.96"	1.00"	3.03"	.375"
V590P-8-04	1/2"	1-1/16"	3.80"	1.30"	4.88"	1.08"	2.95"	.500"
V590P-16-04	1"	1-9/16"	3.96"	1.90"	5.34"	1.38"	4.17"	.750"
