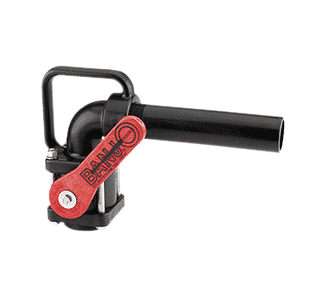

VA200/150 Banjo Polypropylene Nozzle Valve with 90 deg. Elbow - 2" x 1-1/2" Female NPT - 1-1/2" Male NPT x 8" Nozzle - 1-1/2" Opening Thru Ball - 150 PSI

VA200/150 by Banjo | Nozzle Valve | 2" x 1-1/2" Female NPT, 1-1/2" Male NPT x 8" Nozzle | 1-1/2" Opening Thru Ball | 90° Elbow | Polypropylene

Save $5.75 Save $5.75
$51.76
$51.76 - $51.76
$51.76
$46.01
$46.01 - $46.01
$46.01



Banjo Valves - Nozzle Valves - 90 deg. Elbow - Polypropylene
Specifications for Variant SKU: VA200/150 Banjo
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Male NPT, 8in Nozzle
Material(s): Polypropylene
Applications:
  • Fluids
Features:
  • Lightweight hose end valve for convenient transfer of liquids into drums, tanks, etc.
  • Angled end flange with 8" long polypropylene fill spout.
  • All stainless bolts.
Other Components:
  • Nozzle Valve Replacement Parts/li>

Part Number Nozzle Size End Type Opening Thru Ball Max PSI Package Quantity
VA150 1-1/2" Male NPT x 8" Nozzle End 1-1/2" Female NPT 1-1/2" 225 PSI 1
VA200/150 1-1/2" Male NPT x 8" Nozzle End 2" x 1-1/2" Female NPT 1-1/2" N/A 1
VA200 2" Male NPT x 8" Nozzle End 2" Female NPT 1-1/2" 200 PSI 1
VA200FP 2" Male NPT x 8" Nozzle End 2" Female NPT 2" 225 PSI 1

Replacement Parts for VA150, VA200/150, VA200
Part Number Description Quantity Required
V20151M Stem 1
V20152 Red Angle Handle 1
V20254 Body 1
V20255A* Ball 1
V20256 2" FPT End Plate 2
V20257 1-1/2" End Plate 2
V20258A* Ball Seat 2
V20264* FKM (viton type) Body O-RIng 2
V20159* Upper Stem Bushing 1
V20060* Thrust Washer 1
V20262 1-1/2" FP Angle End Flange 1
V20163* FKM (viton type) Stem O-Ring 1
V20166 1-1/2" x 8" Nozzle Pipe 1
V25165 2" x 8" Nozzle Pipe 1
V20017 3/8" x 4-1/2" SS Bolt 4
V20018 3/8" SS Lock Washer 4
V20019 3/8" 16 SS Hex Nut 4
V20020 3/8" x 1/2" Handle Bolt 1
V20021 S.S. Handle Washer 1

* Is included in Repair Kit

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
