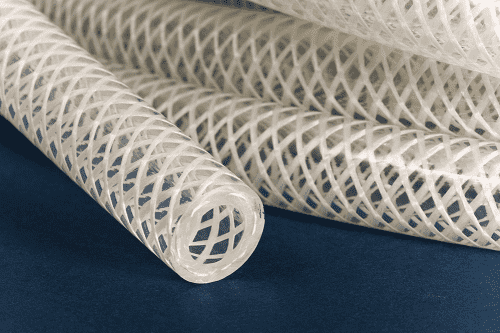

Versilon™ AZY02054 3/4" I.D. x 1-1/16" O.D. x 5/32" Wall (C-544-A IB) 100' Package Length - Precision Polyurethane Pressure Tubing

AZY02054 Versilon™ by Saint Gobain | 3/4" I.D. x 1-1/16" O.D. x 5/32" Wall | C-544-A IB | Precision Polyurethane Pressure Tubing | 100' Package Length

Save $54.40 Save $54.40
$628.88
$628.88 - $628.88
$628.88
$574.48
$574.48 - $574.48
$574.48

Saint Gobain - Versilon™ C-544-A IB Precision Polyurethane Pressure Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: AZY02054 Saint Gobain
Brand: Versilon
Series: C-544-A IB
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 0.75in
Outer Diameter: 0.9375in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, FDA 21 CFR Part 177.1680, FDA 21 CFR Part 177.2600, NSF 61

SPECIFICATIONS

Application: Food and Cosmetic Processing, Abrasive and Viscous Slurry Transfer, Lubrication and Degreaser Dispensing, Pellet and Powder Transfer, Pneumatic Sensory Devices, Instrumentation Control Lines, Coolant Recovery Systems SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: N/A Cover: N/A
Temperature Range: -100 deg. F (-73 deg. C) - 180 deg. F (82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR, 177.1680, 177.2600, NSF 61 Criteria for Potable Water Contact
Literature: Versilon™ C-544-A IB Precision Polyurethane Pressure Tubing (PDF)
Other Features:
    • Tough braid reinforcement for elevated working pressures
    • Exceptional abrasion and tear resistance
    • Excellent resistance to oils, greases and fuels
    • Retains flexibility in sub-zero environments
    • WARNING: Versilon™ C-544-A IB Precision Polyurethane Pressure Tubing is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Suggested Working Pressure at 73 deg. F (PSI)* Max. Suggested Working Pressure at 180 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 180 deg. F (in. Hg) Length
AZY02008 1/8" 3/8" 1/8" 1/4" 420 PSI 220 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AZY02019 1/4" 1/2" 1/8" 3/4" 275 PSI 150 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AZY02029 3/8" 5/8" 1/8" 1-1/2" 205 PSI 115 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AZY02038 1/2" 3/4" 1/8" 2" 195 PSI 110 PSI 29.9 in. Hg 29.9 in. Hg 100ft
AZY02046 5/8" 7/8" 1/8" 3" 175 PSI 105 PSI 29.9 in. Hg 25.0 in. Hg 100ft
AZY02054 3/4" 1-1/16" 5/32" 3-1/2" 150 PSI 100 PSI 29.9 in. Hg 25.0 in. Hg 100ft
AZY02064 1" 1-3/8" 3/16" 4-3/4" 120 PSI 80 PSI 29.9 in. Hg 15.0 in. Hg 100ft
AZY00071 1-1/4" 1-3/4" 1/4" 6" 95 PSI 65 PSI 29.9 in. Hg 20.0 in. Hg 50ft
AZY00074 1-1/2" 2" 1/4" 7-1/2" 80 PSI 50 PSI 29.9 in. Hg 15.0 in. Hg 50ft
AZY00078 2" 2-1/2" 1/4" 13" 70 PSI 40 PSI 15.0 in. Hg 10.0 in. Hg 50ft

* Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
