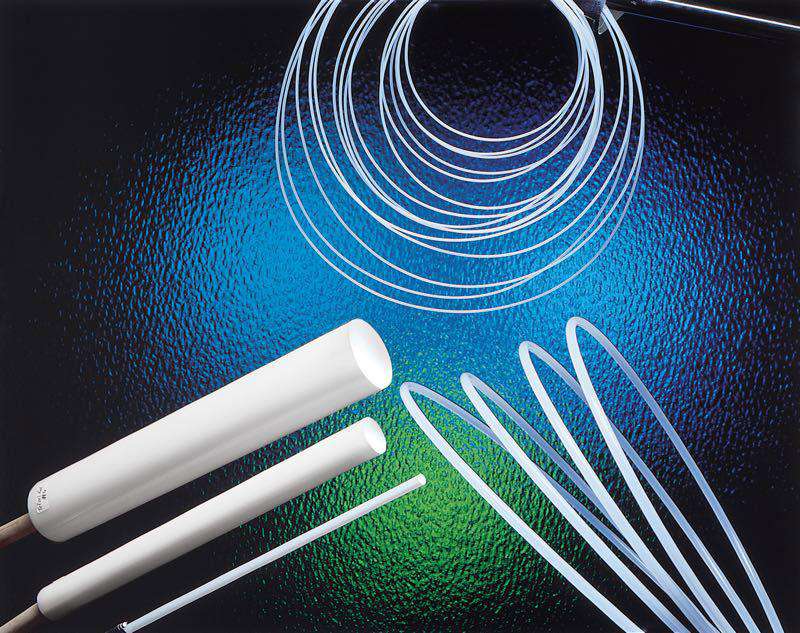

Versilon™ ETFE TSTZ83-0125-031.10 Saint Gobain (1/16" I.D. x 1/8" OD x .031" Wall) ETFE Tubing

TSTZ83-0125-031.10 Versilon™ by Saint Gobain | 1/16" I.D. x 1/8" OD x .031" Wall | ETFE Tubing | Roll of 100 Feet

Save $20.66 Save $20.66
$471.11
$471.11 - $471.11
$471.11
$450.45
$450.45 - $450.45
$450.45

Saint Gobain - Versilon™ ETFE Tubing: Radiation Resistant Tubing with Excellent Mechanical Properties.

Versilon™ ETFE tubing offers improved mechanical properties over fluoropolymers such as FEP and PFA and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C).

Due to its mechanical properties, Versilon™ ETFE tubing can be used to manufacture valves, fittings, bearings, pump components and electrical coatings. Versilon™ ETFE tubing is made from materials that meet ASTM standard D3159.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: TSTZ83-0125-031.10 Saint Gobain | 100 |
Brand: Versilon
Series: Versilon ETFE
Hose Color(s): White/Off-White
Internal Diameter: 0.0625in
Outer Diameter: 0.125in

SPECIFICATIONS

Application: Bearings, Electrical Coatings,
Fittings, Pump Components, Valves		 SAE Rating: N/A
Other Ratings: Meets ASTM standard D3159 Tube: ETFE
Reinforcement: N/A Cover: N/A
Temperature Range: 300°F (150°C) to -150°F (-66°C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Literature: Versilon™ ETFE Tubing (PDF)
Other Features:
  • Mechanical Strength
  • Abrasion Resistant
  • Broad Temperature Range
  • Good Chemical Resistance
  • Continuous Service Temperature 300°F (148°C)
  • WARNING: Versilon™ ETFE Tubing is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.)
TSTZ83-0062-023.10 0.02" 1/16" 0.02"
TSTZ83-0125-031.10 0.016" 1/16" 0.02"
TSTZ83-0125-016.10 3/32" 1/8" 1/64"
TSTZ83-0062-021.10 1/16" 1/8" 1/32"
TSTZ83-0250-031.10 3/16" 1/4" 1/32"
TSTZ83-0312-040.10 1/8" 1/4" 1/16"
TSTZ83-0375-048.10 0.23" 0.31" 0.04"
TSTZ83-0250-062.10 0.28" 0.38" 0.05"
TSTZ83-0500-062.10 3/8" 1/2" 1/16"

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
