Versilon™ NT-80 ADT02282 1/2" ID x .748" OD x .124" Wall 100' Package Length - Flexible Reinforced PVC Tubing

NT-80 ADT02282 Versilon™ by Saint Gobain | 1/2" ID x .748" OD x .124" Wall | Flexible Reinforced PVC Tubing | 100' Package Length

Save $9.48 Save $9.48
$109.64
$109.64 - $109.64
$109.64
$100.16
$100.16 - $100.16
$100.16

Saint Gobain
Versilon™ NT-80 Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: ADT02282 Saint Gobain
Brand: Versilon
Series: NT-80
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.50in
Outer Diameter: 0.748in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Beverage Lines, Chemical Transfer, Coolant Lines, Food handling, Hydraulics, Instrument Lines, Material Handling, Oil and Fuel, Pneumatics, Spray Systems, Water, and Fuel Feeds SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: White Polyester Cord Cover: N/A
Temperature Range: N/A Crimp Fittings: N/A
Reusable Fittings: N/A Specifications Meets FDA Requirements
Literature: N/A
Other Features:

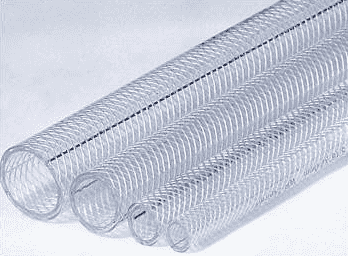

  • White polyester cord embedded within transparent PVC walls.
  • Flexible with a Shore A Durometer of 80.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 160 Deg F (PSI)* Burst Pressure at 73 deg. F (PSI)* Burst Pressure at 160 Deg F (PSI)* Length
ADT02213 3/16" 0.394" 0.103" 300 PSI 115 PSI 1200 PSI 460 PSI 100ft
ADT02019 1/4" 0.500" 0.125" 212 PSI 100 PSI 850 PSI 400 PSI 100ft
ADT02270 3/8" 0.630" 0.127" 162 PSI 75 PSI 650 PSI 300 PSI 100ft
ADT02282 1/2" 0.748" 0.124" 162 PSI 75 PSI 650 PSI 300 PSI 100ft
ADT02289 5/8" 0.905" 0.140" 156 PSI 81 PSI 625 PSI 325 PSI 100ft
ADT02295 3/4" 1.024" 0.137" 125 PSI 56 PSI 500 PSI 225 PSI 100ft
ADT02301 1" 1.293" 0.146" 94 PSI 45 PSI 375 PSI 180 PSI 100ft
ADT00307 1-1/4" 1.700" 0.225" 88 PSI 40 PSI 350 PSI 160 PSI 50ft
ADT00311 1-1/2" 1.930" 0.215" 75 PSI 40 PSI 300 PSI 160 PSI 50ft
ADT00078 2" 2.500" 0.250" 50 PSI 31 PSI 200 PSI 125 PSI 50ft
* Safety factor of 4 to 1 ratio burst pressure to working pressure. ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
