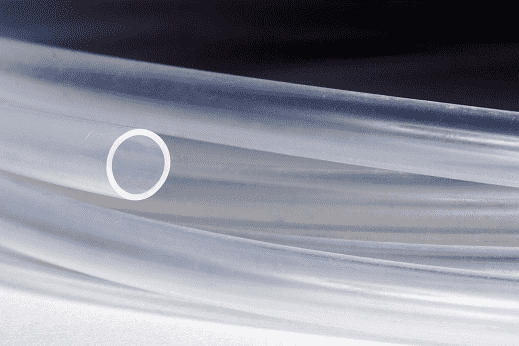

Versilon™ PFA TSPF35-0625-062-50 (1/2" I.D. x 5/8" OD x .062 Wall) 50' Package Length - PFA Tubing

TSPF35-0625-062-50 Versilon™ by Saint Gobain | 1/2" I.D. x 5/8" OD x .062 Wall | PFA Tubing | 50' Package Length

Save $87.56

$788.06

$788.06 - $788.06

$788.06

$700.50

$700.50 - $700.50

$700.50

Saint Gobain - Versilon™ PFA Tubing

This PFA tubing is widely used in the semiconductor, laboratory, environmental, and pharmaceutical industries where ultrapure chemicals (including water) require precise quality control.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: TSPF35-0625-062-50 Saint Gobain \| 50 \|
Brand:	Versilon
Series:	Versilon PFA
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.50in
Outer Diameter:	0.625in
Tubing Construction:	Perfluoroalkoxy Alkane
Applicable Specs & Approvals:	Applicable FDA Requirements, USP - Class VI

SPECIFICATIONS

Other Features:
Application:	Semiconductor Processing, Analytical and Process Equipment in Biotechnology, Pharmaceutical, and Environmental Fields, Ultraviolet Radiation Sterilization Systems, Cryogenic, General Laboratory Use, Chemical Processing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PFA
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-320 deg. F (-196 deg. C) - 500 deg. F (260 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	FDA and USP Class VI
Literature:	Versilon™ PFA Tubing (PDF)
Chemically inert Ultra-pure and Non-toxic Wide temperature capabilities Non-corroding and non-oxidizing Outstanding dielectric properties Non-stick Autoclavable

Part Number (50ft Lengths)	Part Number (100ft Lengths)	Inside Diameter (in. or mm)	Outside Diameter (in. or mm)	Wall Thickness (in. or mm)	Bend Radius (in.)	Max. Working Pressure at 73 deg. F (PSI)*	Max. Working Pressure at 212 deg. F (PSI)*	Max. Working Pressure at 400 deg. F (PSI)*
TSPF35-0125-031-50	TSPF35-0125-031.10	1/16"	1/8"	.016"	1/2"	412 PSI	148 PSI	N/A
TSPF35-0250-062-50	TSPF35-0250-062.10	1/8"	1/4"	.031"	1/2"	417 PSI	150 PSI	N/A
TSPF35-0250-047-50	TSPF35-0250-047.10	5/32"	1/4"	.047"	3/4"	289 PSI	104 PSI	N/A
TSPF35-0250-031-50	TSPF35-0250-031.10	3/16"	1/4"	.031"	1"	177 PSI	64 PSI	N/A
TSPF35-0312-062-50	-	3/16"	5/16"	.062"	1-1/2"	312 PSI	112 PSI	N/A
TSPF35-0312-031-50	-	1/4"	5/16"	.031"	1-3/4"	140 PSI	50 PSI	N/A
TSPF35-0375-062-50	TSPF35-0375-062.10	1/4"	3/8"	.062"	1"	250 PSI	90 PSI	N/A
TSPF35-0375-031-50	TSPF35-0375-031.10	5/16"	3/8"	.031"	2-1/2"	113 PSI	41 PSI	N/A
TSPF35-0500-062-50	TSPF35-0500-062.10	3/8"	1/2"	.062"	2"	97 PSI	35 PSI	N/A
TSPF35-0500-031-50	-	7/16"	1/2"	.031"	4"	83 PSI	30 PSI	N/A
TSPF35-0625-062-50	-	1/2"	5/8"	.062"	3"	139 PSI	50 PSI	N/A
TSPF35-0750-062-50	TSPF35-0750-062.10	5/8"	3/4"	.062"	6"	114 PSI	41 PSI	N/A

* Safety factor of 4 to 1 ratio burst pressure to working pressure. ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
